Yanmar F-230

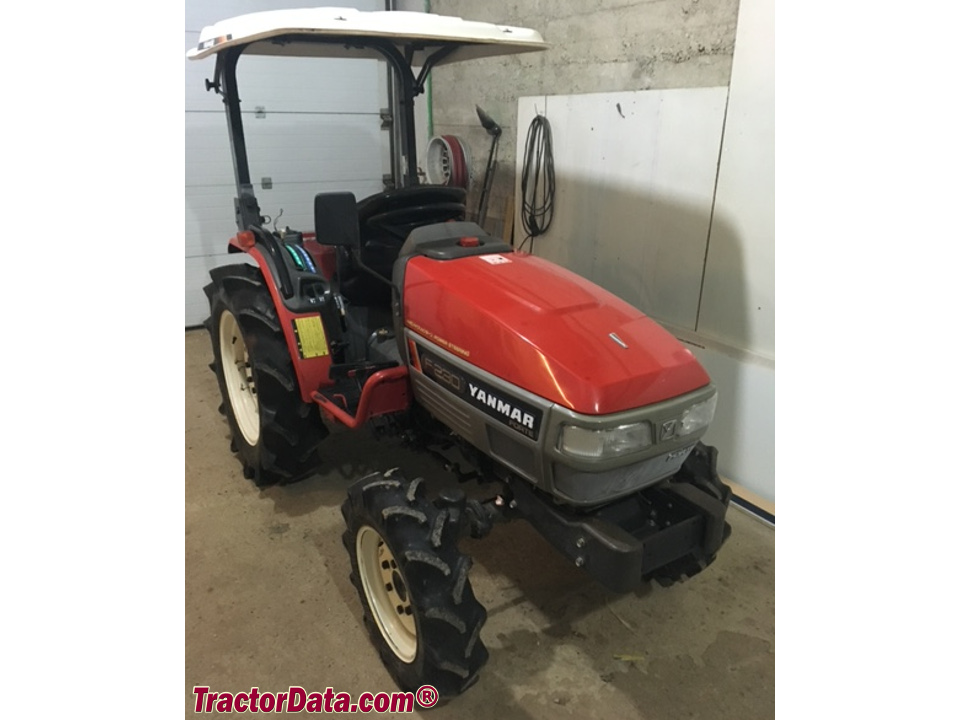

Yanmar F-230 tractor photo
1992 - 1998
Forte F Series
Compact Utility tractor
Series map:
F-210
F-230
F-250
15.4kw
16.9kw
18.4kw
Production
ManufacturerYanmar
Compact Utility tractor
Yanmar F-230 Engine
Yanmar 1.3L 3-cyl diesel
Fuel tank5.8 gal
22.0 L
Engine details ...
Yanmar F-230 Power
Engine22.7 hp
16.9 kW
Mechanical
Four-wheel drive
Power steering
Two-post ROPS. Cab optional.
Tractor hitch
Rear TypeJIS0
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM553@2500
727@2500
1210@2500
-667@2500
Dimensions & Tires
Wheelbase55.9 inches
141 cm
Weight1940 to 2083 pounds
Front tire6-14
Rear tire9.5-22
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps20
Battery volts12
Battery AH70
References
F-230 references literature
Forte F-190/210/230/250 (41812-011292) published in 1992
