New Holland PowerStar 75

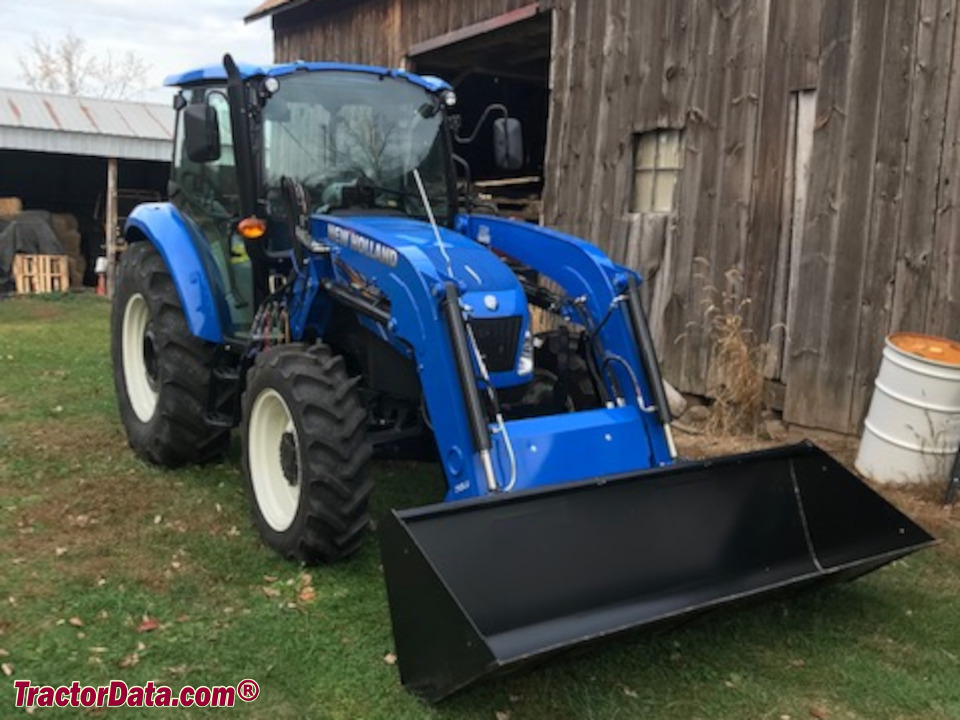

New Holland PowerStar 75 tractor photo
2018 -
PowerStar Series
Utility tractor
Series map:
PowerStar 65
PowerStar 75
PowerStar 90
64.0hp
74.0hp
86.0hp
Production
ManufacturerNew Holland (a part of CNH)
Utility tractor
Original price was $70,392 in 2020
Variants
Farmall 75Csimilar CaseIH model
New Holland PowerStar 75 Transmissions
12-speed Four synchronized gears in three ranges with power shuttle.
12-speed mechanical shuttle
20-speed creeper
Transmission details ...
New Holland PowerStar 75 Power
Engine (gross)74 hp
55.2 kW
PTO (claimed)65 hp
48.5 kW
Mechanical
Drive4x2 2WD: 4x4 MFWD 4WD
Final drivesinboard planetary
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional.
Hydraulics
Typeopen center
Valves1 to 3
Pump flow12.5 gpm
47.3 lpm
Total flow22 gpm
83.3 lpm
Steering flow9.5 gpm
36.0 lpm
Tractor hitch
Rear TypeII
Rear lift (at 24"/610mm)3664 lbs
1661 kg
Power Take-off (PTO)
Rear PTO Type540
 540/540E OptOptional
Dimensions & Tires
2WD Wheelbase85.8 inches
217 cm
4WD Wheelbase83.9 inches
213 cm
Weight5027 to 6239 pounds
Front tire7.50x16
2WD Rear tire16.9R30
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps120
Battery volts12
References
PowerStar 75 references literature
Powerstar Tractors published in 2017, by New Holland
