Kubota M1-55
|
|
| Production | |
| Manufacturer | Kubota |
| Utility tractor | |
| Kubota M1-55 Engine | |
| Kubota 3.2L 3-cyl diesel | |
| Fuel tank | 21.1 gal 79.9 L |
 Engine details ... | |
| Kubota M1-55 Transmissions | |
| 12-speed | |
| 18-speed creeper | |
 Transmission details ... |
| Kubota M1-55 Power | |
| Engine | 55 hp 41.0 kW |
| PTO (claimed) | 52.8 hp 39.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Four-post ROPS. Cab optional. |

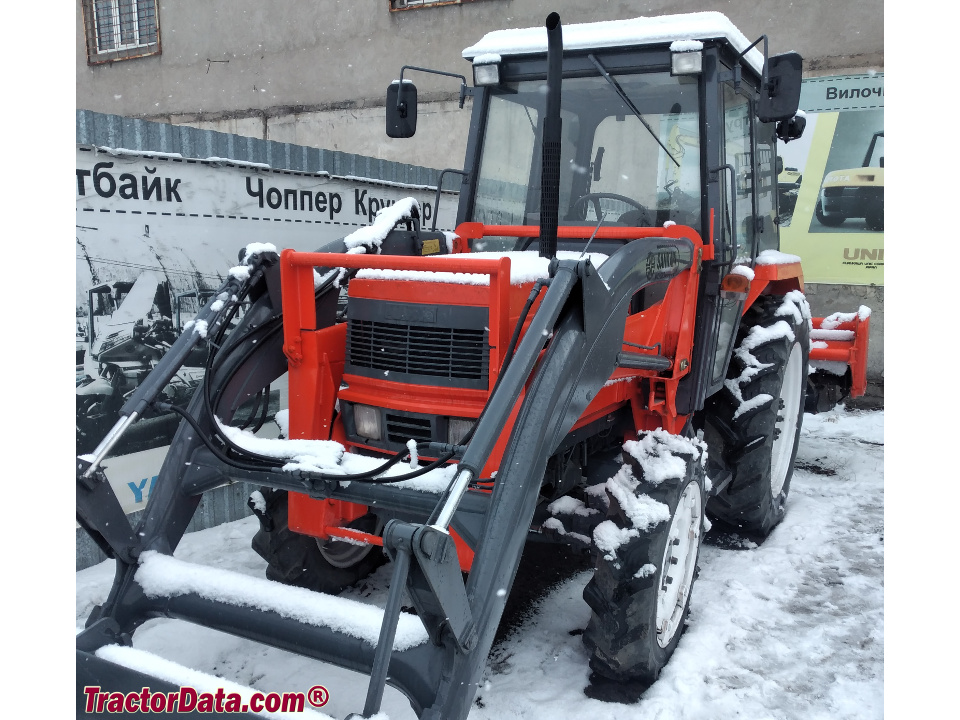

| Photos | |
 | |
 Kubota M1-55 photos... | |
| Tractor hitch | |
| Rear Type | JIS1 |
| JIS2 | |
| Rear lift | 4409 lbs 1999 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@2016 |
| 1000@2381 | |
| Dimensions & Tires | |
| Wheelbase | 79.3 inches 201 cm |
| Weight | 5401 lbs 2449 kg |
| Front tire | 8.2-22 |
| Rear tire | 12.4-32 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

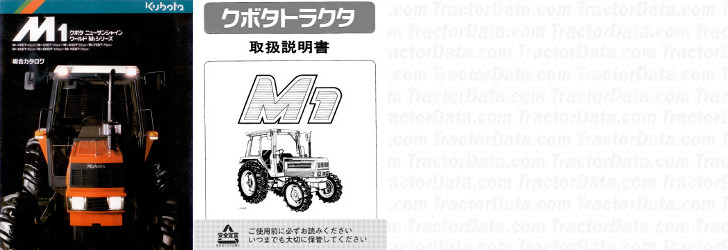

| References | |
 | |
| M1 published in 1991, by Kubota | |
| M1 (33760-9971-2) |
