Series: | M4-061 | → M4-071 |
Transmissions overview | |
12-speed power shuttle | |
18-speed creeper |
Transmission | |
Type: | power shuttle |
Gears: | 12 forward and reverse |
Clutch: | wet disc |
Six synchronized gears in two ranges with left-hand hydraulic shuttle. Push-button clutch for gear shifts. |

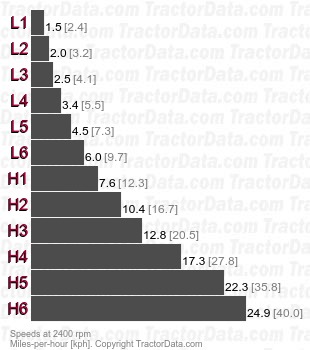

Speeds | |
With 420/85R30 rear tires. | |
Transmission | |
Type: | creeper |
Gears: | 18 forward and reverse |
Optional creeper adds an additional range to the standard shuttle transmission. |

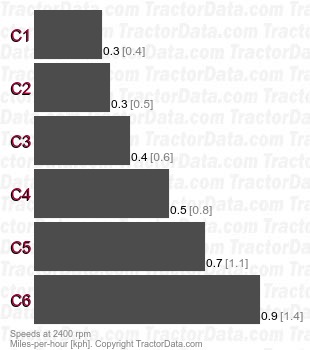

Speeds | |
With 420/85R30 rear tires. | |
