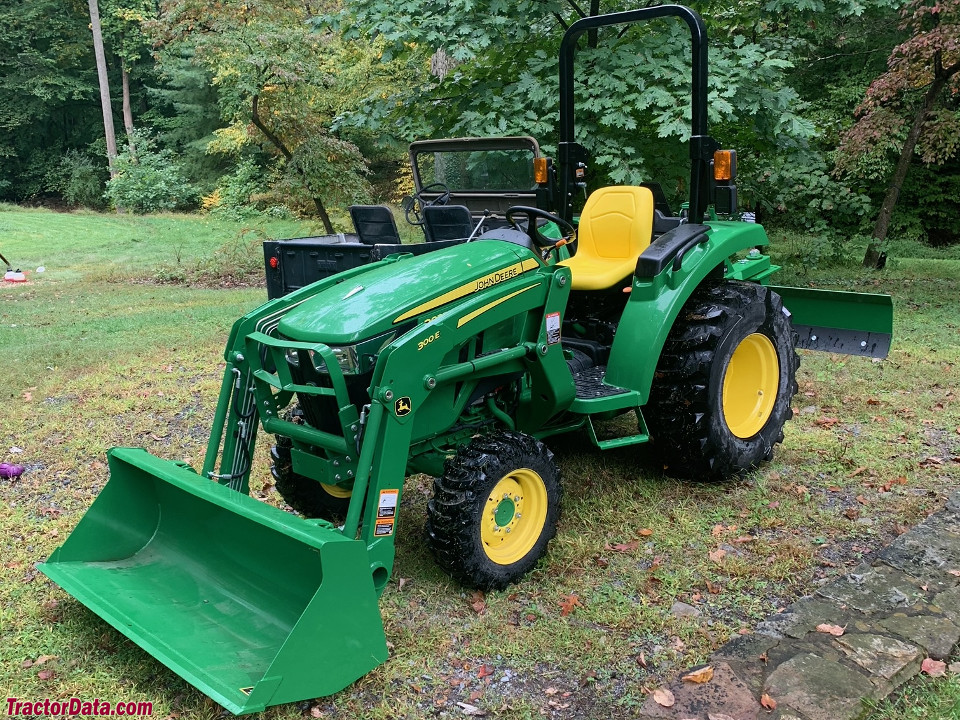

John Deere 3035D
|
|
| Production | |
| Manufacturer | John Deere |
| Compact Utility tractor | |
| Built in India | |
| Original price was $20,597 in 2019 | |
| John Deere 3035D Engine | |
| Yanmar 1.6L 3-cyl diesel | |
| Fuel tank | 9.7 gal 36.7 L |
 Engine details ... | |
| John Deere 3035D Transmission | |
| 8-speed mechanical shuttle | |
 Transmission details ... |
| John Deere 3035D Power | |
| Engine (gross) | 34.2 hp 25.5 kW |
| PTO (claimed) | 30.4 hp 22.7 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | spur gear |
| Power steering | |
| Mechanical wet disc brakes | |
| Two-post folding ROPS. | |
| Photos | |
 | |
 John Deere 3035D photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2500 psi 172.4 bar |
| Rear valves | 2 OptOptional |
| Pump flow | 5.9 gpm 22.3 lpm |
| Total flow | 10.3 gpm 39.0 lpm |
| Steering flow | 4.4 gpm 16.7 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at 24"/610mm) | 1670 lbs 757 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Engine RPM | 540@2400 |
| Dimensions & Tires | |
| Wheelbase | 62 inches 157 cm |
| Weight | 2811 lbs 1275 kg |
| Front tire | 7-14 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| John Deere 3035D attachments | |
| front-end loader | |
 Attachment details ... |
| 3035D Serial Numbers | |
| Location: | Serial number plate on the left side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 55 |
| Battery CCA | 600 |
| Battery volts | 12 |
| References | |
 | |
| 3 Series published in 2019, by John Deere | |
| 3 Series published in 2022, by John Deere |
