Kubota L3400
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Original price was $14,137 in 2011 | |
| Variants | |
| L3400F | 2WD gear |
| L3400DT | 4WD gear |
| L3400HST | 4WD hydro |
| Kubota L3400 Engine | |
| Kubota 1.8L 3-cyl diesel | |
 Engine details ... |
| Kubota L3400 Transmissions | |
| hydrostatic | |
| 8-speed constant mesh | |
 Transmission details ... |
| Kubota L3400 Power | |
| Engine (gross) | 35.7 hp 26.6 kW |
| Engine (net) | 34.2 hp 25.5 kW |
| Gear PTO (claimed) | 30 hp 22.4 kW |
| Hydro PTO (claimed) | 28.5 hp 21.3 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | rear standard |
| Power steering | |
| Mechanical wet disc brakes | |
| Two-post ROPS. Foldable ROPS and sunshade optional. | |

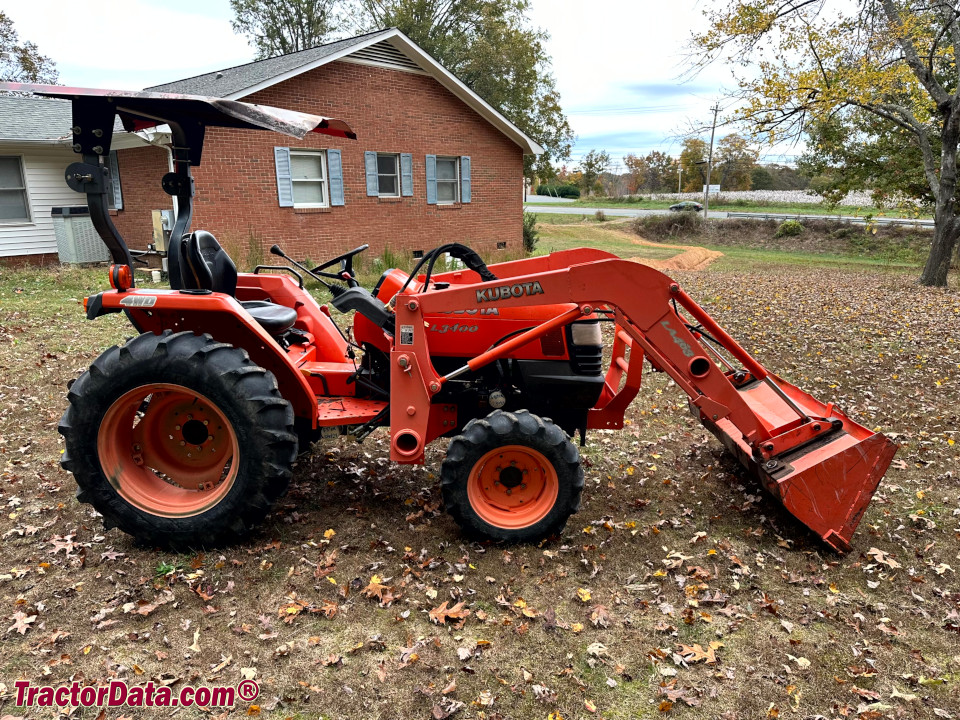

| Photos | |
 | |
 Kubota L3400 photos... | |
| Capacity | |
| Fuel | 9 gal 34.1 L |
| Hydraulic system | 7.3 gal 27.6 L |
| Front axle | 4.8 qts 4.5 L |
| Hydraulics | |
| Type | open center |
| Capacity | 7.3 gal 27.6 L |
| Valves | 0 to 3 |
| Pump flow | 6.8 gpm 25.7 lpm |
| Total flow | 10.9 gpm 41.3 lpm |
| Steering flow | 4.1 gpm 15.5 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 1985 lbs 900 kg |
| Rear lift (at 24"/610mm) | 1433 lbs 650 kg |
| Power Take-off (PTO) | |
| Rear PTO | live |
| independent (hydro) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2425 |
| Dimensions & Tires | |
| Wheelbase | 63.3 inches 160 cm |
| Weight | 2403 to 2600 pounds |
| Front tire | 5-15 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| Kubota L3400 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| Battery CCA | 490 |
| Battery volts | 12 |
| References | |
 | |
| L2800/L3400/L4400 published in 2007, by Kubota |
