John Deere 20C
2009 - 2011
Milenio C Series Compact Utility tractor
Series map:
20C
25C
13.8kw
17.7kw
Production
Manufacturer John Deere
Compact Utility tractor
John Deere 20C Power
Engine (gross) 18.5 hp13.8 kW
Engine (net) 16.8 hp12.5 kW
PTO (claimed) 12 hp8.9 kW
Mechanical
Power steering
Two-post mid-mount folding ROPS.
Photos
No photos of the John Deere 20C are currently available. To submit yours, email it to Peter@TractorData.com . Photos may only be used with the permission of the original photographer.
Hydraulics
Pressure 2176 psi150.0 bar
Pump flow 3.7 gpm14.0 lpm
Tractor hitch
Rear Type IN
Rear lift (at 24"/610mm) 551 lbs249 kg
Power Take-off (PTO)
Rear PTO Type 540/1000

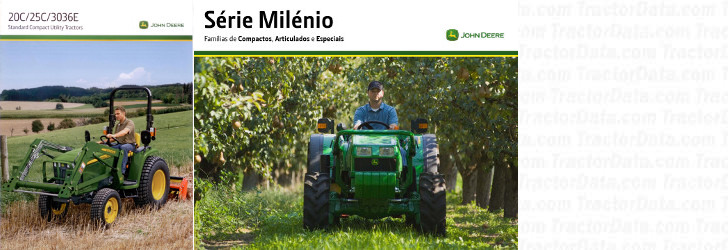

References
20C/25C/3036E Standard Compact Utility Tractors published in 2009, by John Deere
Serie Milenio published in 2010, by John Deere
