Tractors > CaseIH > Farmall 80N

CaseIH Farmall 80N

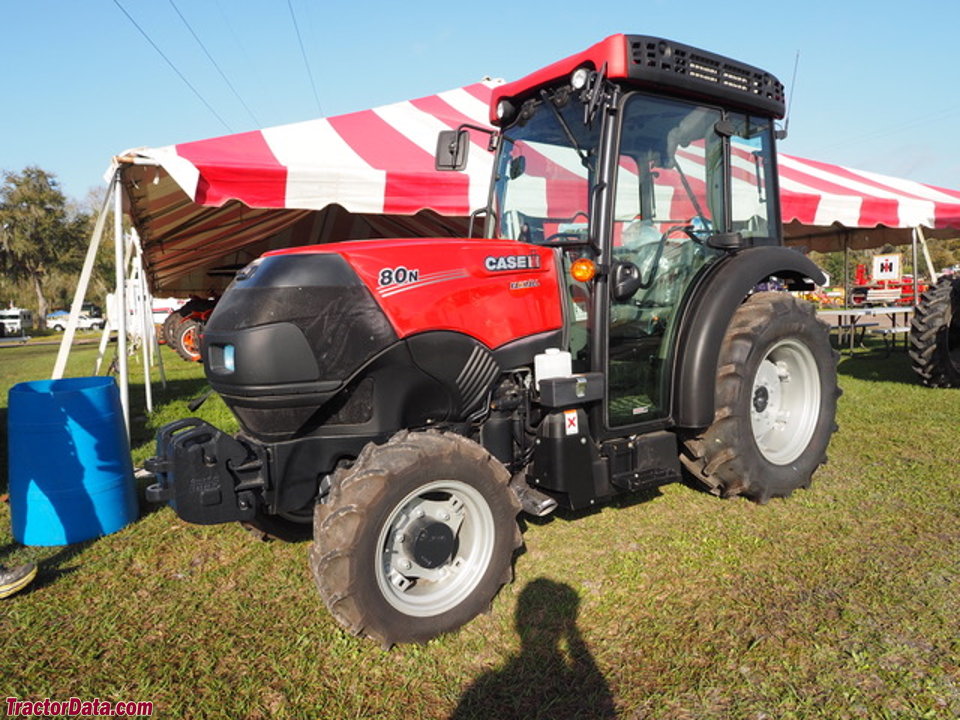

CaseIH Farmall 80N tractor photo
2017 -    Farmall N Series
Orchard/Vineyard tractor
Previous model:CaseIH Farmall 75N
Series next:CaseIH Farmall 100N



Original price (USD)
   $58,795 (2019 Syncro ROPS 2WD )
   $74,956 (2019 Hi-Lo Cab 4WD )

CaseIH Farmall 80N Engine:

   FPT 3.4L 4-cyl diesel
full engine details ...


Fuel:19 gal [71.9 L]

3-Point Hitch:

Rear Type:II/I
Rear lift (at ends):5732 lbs [2600 kg]
Rear lift (at 24"/610mm):3780 lbs [1714 kg]
Front Hitch:optional

Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/540E

Dimensions & Tires:

Wheelbase:96 inches [243 cm]
Weight:5300 to 6094 pounds
Front tire:6.00-16
2WD Rear tire:14.9R28
full dimensions and tires ...

Farmall 80N Serial Numbers:

how to read serial numbers...


CaseIH Farmall 80N Power:

Engine (gross):74 hp [55.2 kW]
PTO (claimed):62 hp [46.2 kW]


Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Brakes:wet disc
Cab:Two-post ROPS. Cab optional with air-conditioning.


Type:open center
Rear valves:2 or 3
Mid valves:2*Optional
Pump flow:16.9 gpm [64.0 lpm]
 21.1 gpm [79.9 lpm] *Optional with cab.
Steering flow:11.4 gpm [43.1 lpm]


Charging system:alternator
Charging amps:120
