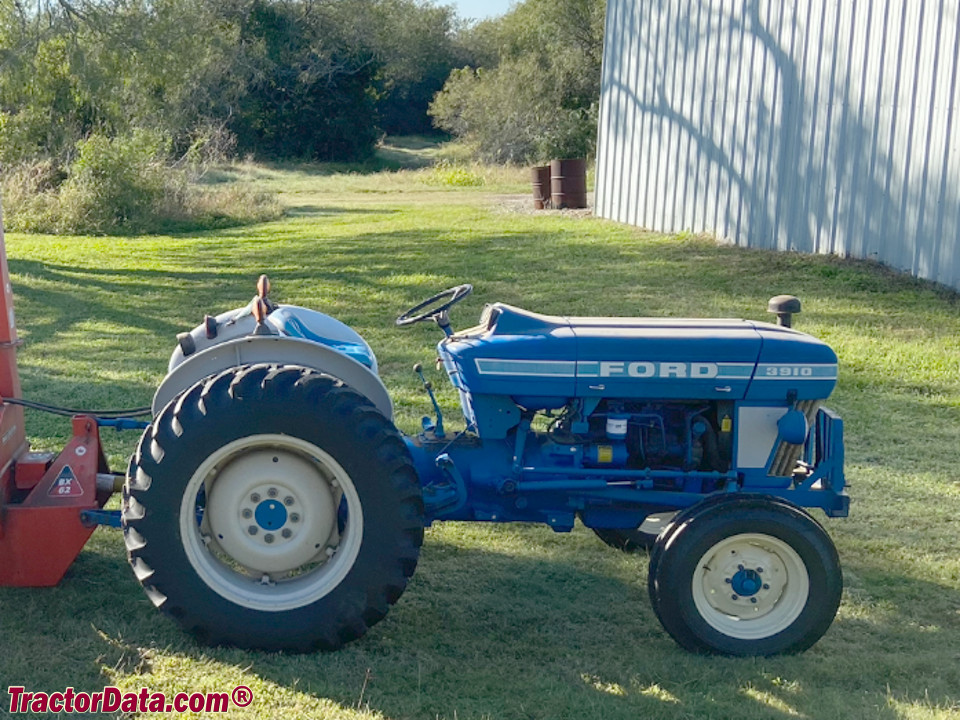

Ford 3910 Narrow Orchard
| | 10 Series | | Orchard/Vineyard tractor |
|
| Production |
| Manufacturer: | Ford
|
| Type: | Orchard/Vineyard tractor
|
| Ford 3910 Narrow Orchard Power |
| Engine (gross): | 51 hp
38.0 kW
|
| PTO (claimed): | 42 hp
31.3 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post fixed ROPS.
|
| Transmissions: | 8-speed gear
|
| | 8-speed synchromesh
|
 Transmission details ... |
| Capacity |
| 2WD Fuel: | 13 gal
49.2 L
|
| 4WD Fuel: | 16 gal
60.6 L
|
| Hydraulic system: | 12.1 gal
45.8 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 12.1 gal
45.8 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Pump flow: | 7.7 gpm
29.1 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 3080 lbs
1397 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@1800
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 46
|
| Battery volts: | 12
|
| Battery AH: | 128
|
| Page information |
| Last update: | December 16, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
