Deutz-Allis 6250V
|
|
| Production | |
| Manufacturer | Deutz-Allis |
| Orchard/Vineyard tractor | |
| Deutz-Allis 6250V Engine | |
| Deutz 2.8L 3-cyl diesel | |
| Fuel tank | 14.5 gal 54.9 L |
 Engine details ... | |
| Deutz-Allis 6250V Transmissions | |
| 8-speed | |
| 12-speed creeper | |
| 16-speed | |
| 24-speed | |
 Transmission details ... |
| Deutz-Allis 6250V Power | |
| PTO (claimed) | 51 hp 38.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Hydraulic drum brakes | |
| Two-post mid-mount folding ROPS. |

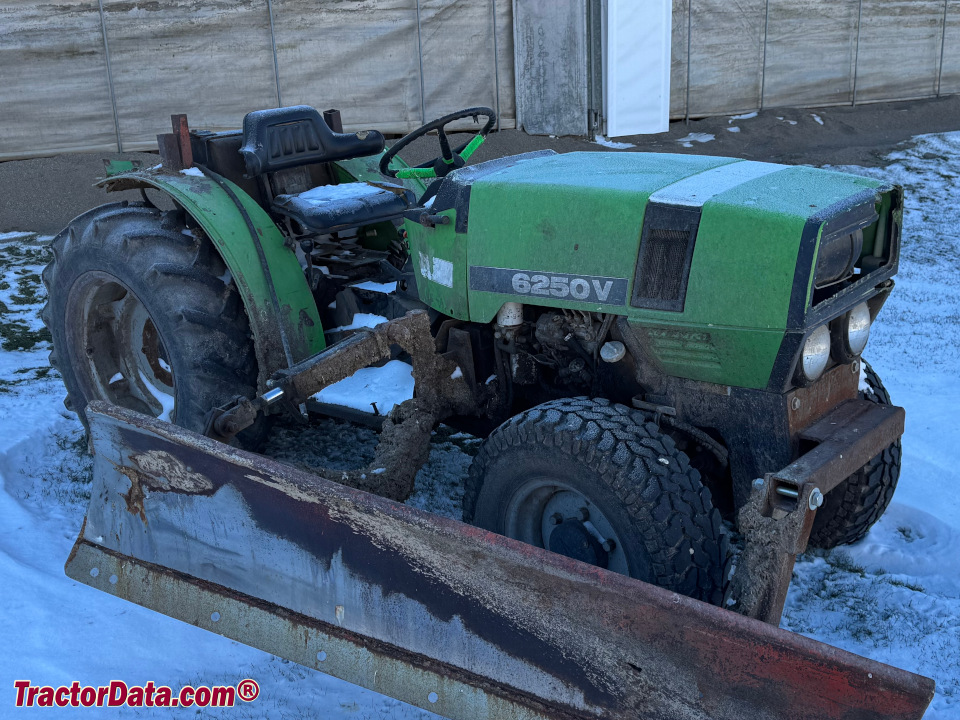

| Photos | |
 | |
 Deutz-Allis 6250V photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2538 psi 175.0 bar |
| Valves | 1 to 4 |
| Pump flow | 13.7 gpm 51.9 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 4850 lbs 2199 kg |
| Front lift | 3130 lbs 1419 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| 540/1000 OptOptional | |
| Dimensions & Tires | |
| Wheelbase | 75.4 inches 191 cm |
| Weight | 4519 to 4850 pounds |
| Front tire | 7.50x16 |
| Rear tire | 13.6x24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 55 |
| Battery volts | 12 |
| Battery AH | 110 |
| References | |
 | |
| Special Tractors published in 1987, by Deutz-Allis |
