JCB Fastrac 4220
|
|
| Production | |
| Manufacturer | JCB |
| Four-wheel Drive (4WD) tractor | |
| JCB Fastrac 4220 Engine | |
| AGCO Power 6.6L 6-cyl diesel | |
 Engine details ... |
| JCB Fastrac 4220 Transmission | |
| continuously variable transmission | |
 Transmission details ... |
| JCB Fastrac 4220 Power | |
| Engine (gross) | 217 hp 161.8 kW |
| Engine (max) | 235 hp 175.2 kW |
| PTO (claimed) | 195 hp 145.4 kW |
| Mechanical | |
| Drive | 4x4 4WD |
| Final drives | outboard planetary |
| Disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Cab standard with air-conditioning. | |

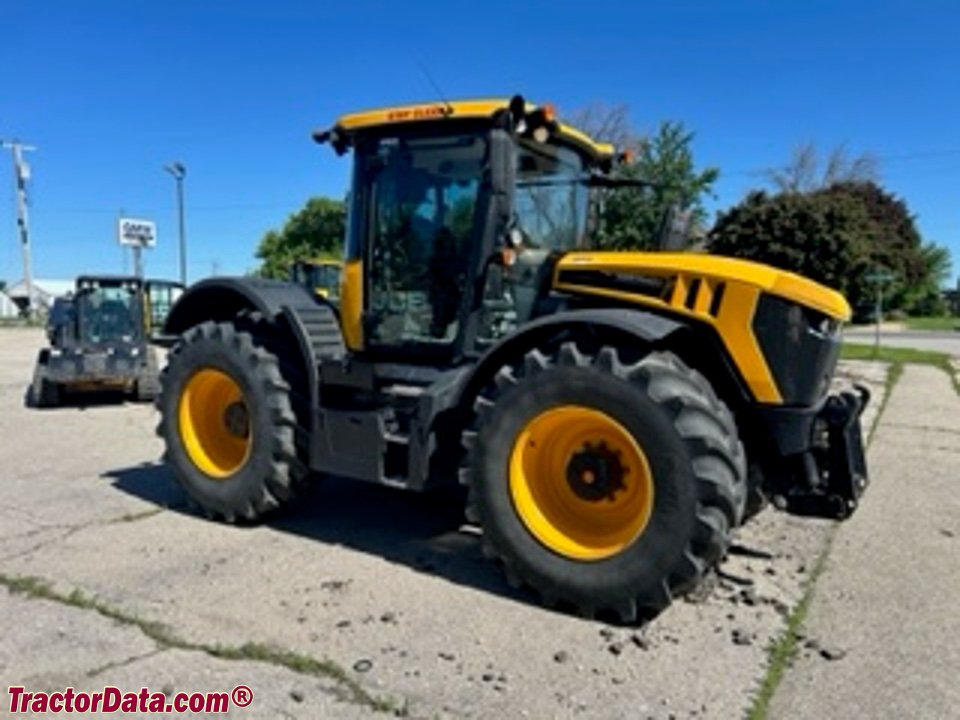

| Photos | |
 | |
 JCB Fastrac 4220 photos... | |
| Capacity | |
| Fuel | 103 gal 389.9 L |
| Exhaust fluid (DEF) | 11.9 gal 45.0 L |
| Hydraulic system | 34.3 gal 129.8 L |
| Hydraulics | |
| Capacity | 34.3 gal 129.8 L |
| Pressure | 3046 psi 210.0 bar |
| Valves | 3 to 6 |
| Pump flow | 39.1 gpm 148.0 lpm |
| SCV flow | 26.4 gpm 99.9 lpm |
| Tractor hitch | |
| Rear Type | III |
| Rear lift | 13228 lbs 6000 kg |
| 15432 lbs 6999 kg | |
| 17637 lbs 8000 kg | |
| Front Hitch | II OptOptional |
| Front lift | 7716 lbs 3499 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| 540/1000 (1.75) | |
| Front PTO | independent |
| Front PTO Type | 1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 117.3 inches 297 cm |
| Weight | 16700 lbs 7575 kg |
| Front tire | 540/65R34 |
| Rear tire | 540/65R34 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery volts | 12 |
| Battery AH | 110 |
