| | 1966 - 1968 |
| High-Clearance tractor |
|
| Transmissions overview |
| 8-speed partially synchronized |
| 8-speed full power shift |
| Transmission |
| Transmission: | John Deere Syncro-Range
|
| Type: | partially synchronized
|
| Gears: | 8 forward and 2 reverse
|
| Clutch: | dry disc
|
| Oil capacity: | 44 qts
41.6 L (dry)
|
| | 32 qts
30.3 L (service)
|
| Oil type: |
|
| Oil change: | 1200 h
|
| Four shift stations with two forward gears gear. A reverse gear is also available in stations one and two. Synchronized shifting between gears within each station. Tractor must be stopped to shift between stations. |

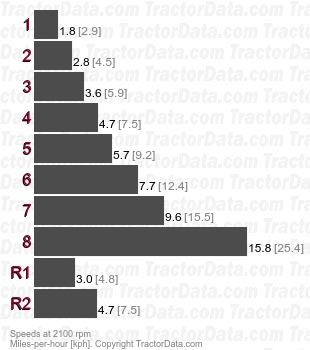

| Speeds |
|
| Transmission |
| Transmission: | John Deere Power Shift
|
| Type: | full power shift
|
| Gears: | 8 forward and 4 reverse
|
| Clutch: | hydraulic wet disc
|
| Oil capacity: | 56 qts
53.0 L (dry)
|
| | 44 qts
41.6 L (service)
|
| Oil type: |
|
| Oil change: | 1200 h
|

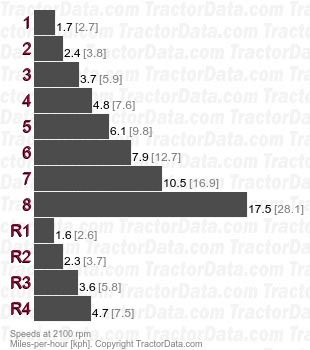

| Speeds |
|
