Kubota B2230

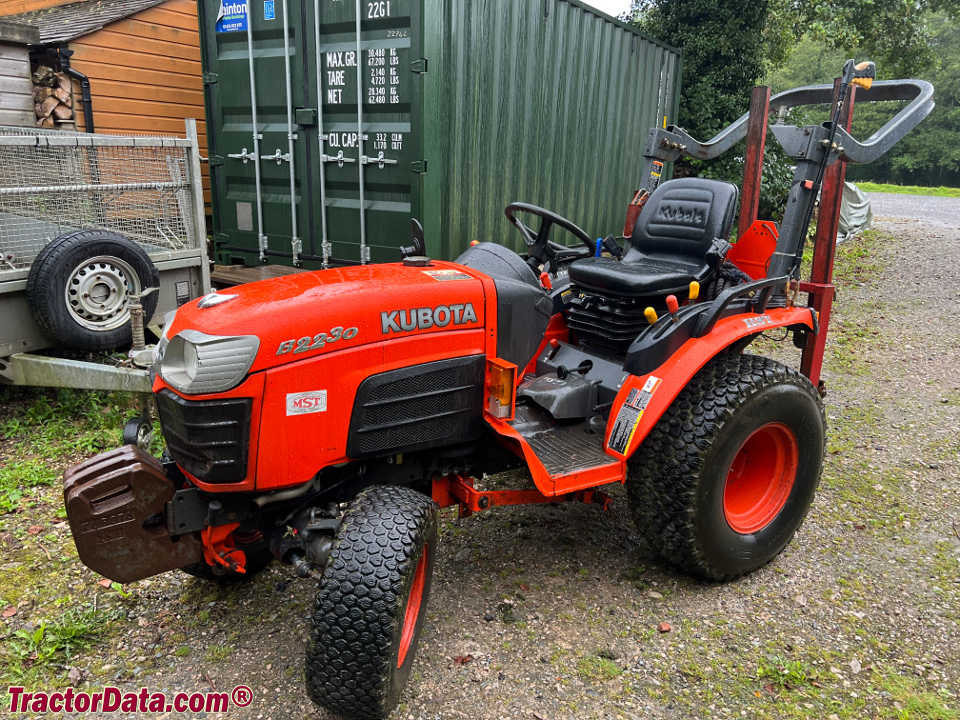

Kubota B2230 tractor photo
2007 - 2013
B30 Series
Compact Utility tractor
Series:B1830 ← B2230 → B2530
B2350 ↓
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Kubota B2230 Power
Engine (gross):21.7 hp
16.2 kW
Engine (net):19.4 hp
14.5 kW
Gear PTO (claimed):17.7 hp
13.2 kW
Hydro PTO (claimed):16.8 hp
12.5 kW
Kubota B2230 Engine
Kubota 1.0L 3-cyl diesel
Fuel tank:7.4 gal
28.0 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:9-speed mechanical shuttle
 hydrostatic
Transmission details ...
Photos
No photos of the Kubota B2230 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pressure:2205 psi
152.0 bar
Pump flow:5.4 gpm
20.4 lpm
Total flow:9.5 gpm
36.0 lpm
Steering flow:4.1 gpm
15.5 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):2138 lbs
969 kg
Power Take-off (PTO)
Gear Rear PTO:transmission
Hydro Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2592
Mid PTO:optional
Mid RPM:2500 (Kubota 10-tooth #5)
Engine RPM:2500@2600
Dimensions & Tires
Wheelbase:59.1 inches
150 cm
Weight:1587 to 2105 pounds
Front tire:6-12
Rear tire:9.5-16
Full dimensions and tires ...
B2230 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above and forward of the front axle.
Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery volts:12
