Kubota A-19

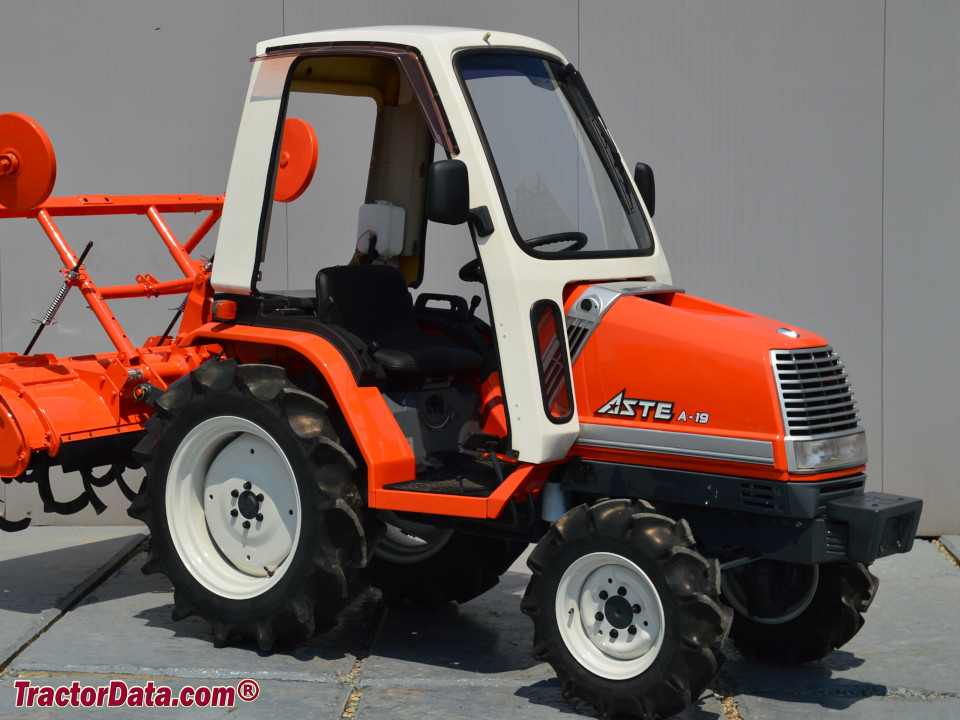

Kubota A-19 tractor photo
1988 - 1992
Aste Series
Sub-Compact Utility tractor
Series:A-17 ← A-19
A-195 ↓
Production
Manufacturer:Kubota
Type:Sub-Compact Utility tractor
Kubota A-19 Power
Engine:18.3 hp
13.6 kW
Kubota A-19 Engine
Kubota 1.1L 3-cyl diesel
Fuel tank:4.5 gal
17.0 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Cab:Two-post ROPS.
Transmission:6-speed
Transmission details ...
Photos
No photos of the Kubota A-19 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear Type:0
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:453@2600
799@2600
1194@2600
Dimensions & Tires
Wheelbase:53.2 inches
135 cm
Weight:1477 lbs
669 kg
Front tire:6-12
Rear tire:8.3-20
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
