Massey Ferguson 3710F

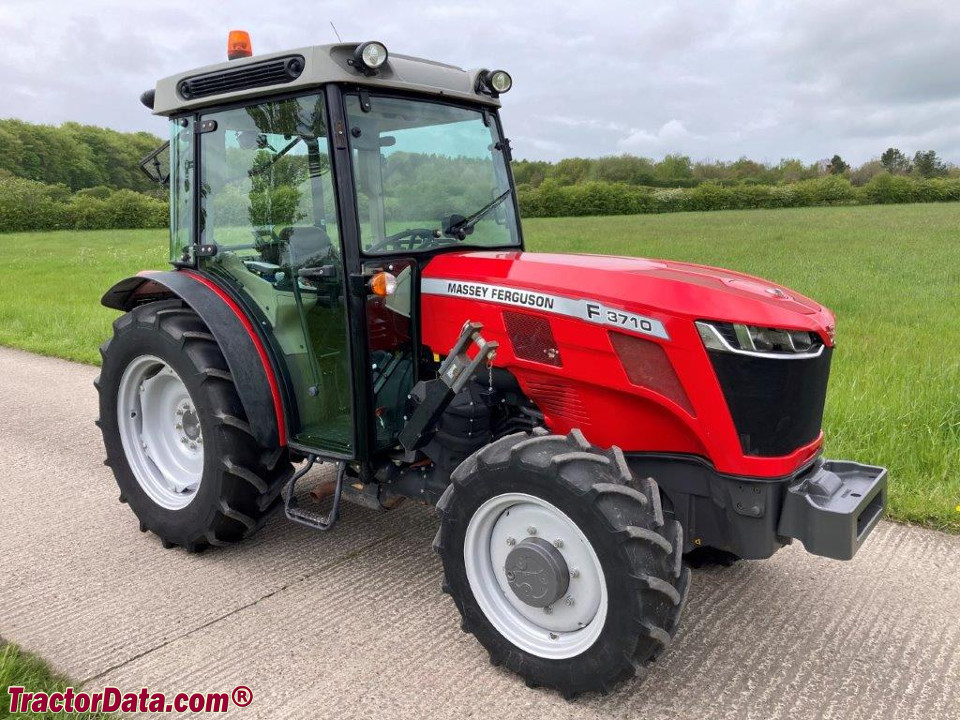

Massey Ferguson 3710F tractor photo
2017 -
3700 Series
Orchard/Vineyard tractor
3660F
Series:3709F3710F
Production
Manufacturer:Massey Ferguson (a part of AGCO)
Type:Orchard/Vineyard tractor
Variants
3710F:fruit
3710WF:wide fruit
3710S:special
3710GE:ground effects
Massey Ferguson 3710F Power
Engine (max):105 hp
78.3 kW
Massey Ferguson 3710F Engine
3.4L 4-cyl diesel
Fuel tank:19.6 gal
74.2 L
 14.3 gal
54.1 L *Fuel capacity with front PTO.
 27.5 gal
104.1 L *Capacity with optional 30L fuel tank.
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic
Cab:Two-post mid-mount folding ROPS. Cab available with optional air-conditioning.
Transmissions:12-speed mechanical shuttle
 24-speed mechanical shuttle
 24-speed
 24-speed power shuttle
Transmission details ...
Photos
No photos of the Massey Ferguson 3710F are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Valves:2 to 4
Pump flow:17.4 gpm
65.9 lpm *(Standard pump
 7.1 gpm
26.9 lpm *Optional secondary pump, with Efficient package.
Total flow:24.6 gpm
93.1 lpm (Essential)
 31.7 gpm
120.0 lpm (Efficient)
Steering flow:7.1 gpm
26.9 lpm
Tractor hitch
Rear Type:II/I
Control:top-link draft sensing
Rear lift (at ends):5512 lbs
2500 kg
 6614 lbs
3000 kg *Optional
Front Hitch:II
Front lift (at ends):3638 lbs
1650 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electrohydraulic
Rear RPM:540/540E
 540/1000*Optional
Front RPM:540E*Optional
 1000*Optional
Dimensions & Tires
Wheelbase:83.6 inches
212 cm (F/WF)
 82.1 inches
208 cm (GE)
 84.6 inches
214 cm (V/S)
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
