Massey Ferguson 2606H

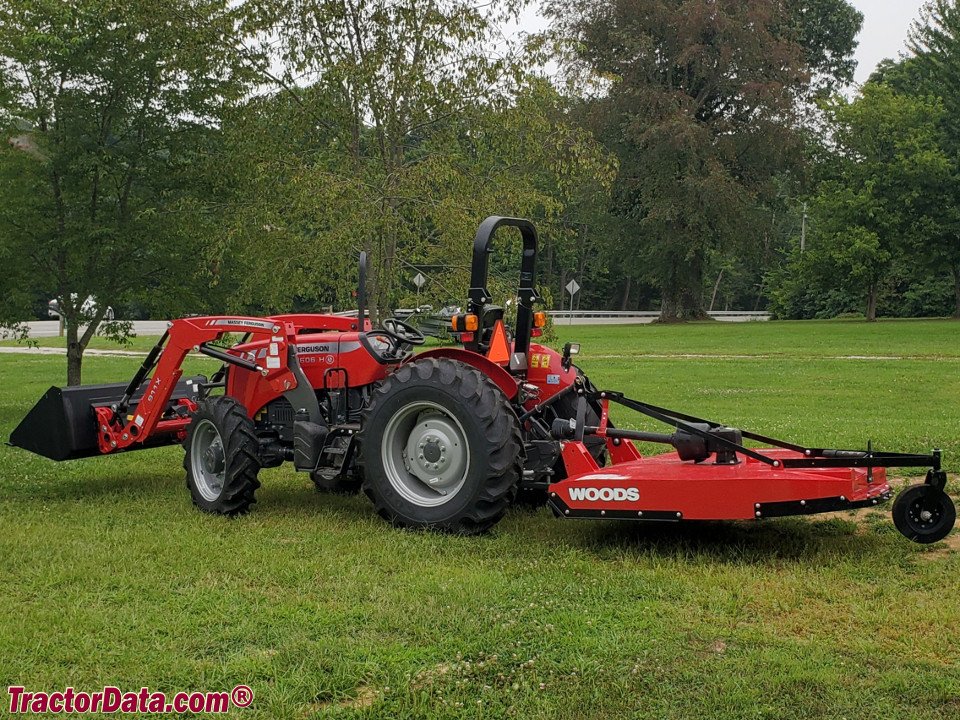

Massey Ferguson 2606H tractor photo
2016 -
2600H Series
Utility tractor
Series:2605H2606H2607H
Production
Manufacturer:Massey Ferguson
Type:Utility tractor
Original price:$24,362 (2017 )
Massey Ferguson 2606H Power
Engine (gross):65 hp
48.5 kW
PTO (claimed):55 hp
41.0 kW
Massey Ferguson 2606H Engine
Simpson 2.6L 3-cyl diesel
Fuel tank:14.5 gal
54.9 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:outboard planetary
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:8-speed sync shuttle
Transmission details ...
Photos
No photos of the Massey Ferguson 2606H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center
Valves:2
Pump flow:10.6 gpm
40.1 lpm
Total flow:15.7 gpm
59.4 lpm
Tractor hitch
Rear Type:II/I
Rear lift (at 24"/610mm):2755 lbs
1249 kg
Power Take-off (PTO)
2WD Rear PTO:live
4WD Rear PTO:independent
Rear RPM:540 (1.375)
Dimensions & Tires
2WD Wheelbase:80.7 inches
204 cm
4WD Wheelbase:81.5 inches
207 cm
Weight:5115 to 5710 pounds
Front tire:7.5x16
2WD Rear tire:14.9x28
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
