Kubota GB20

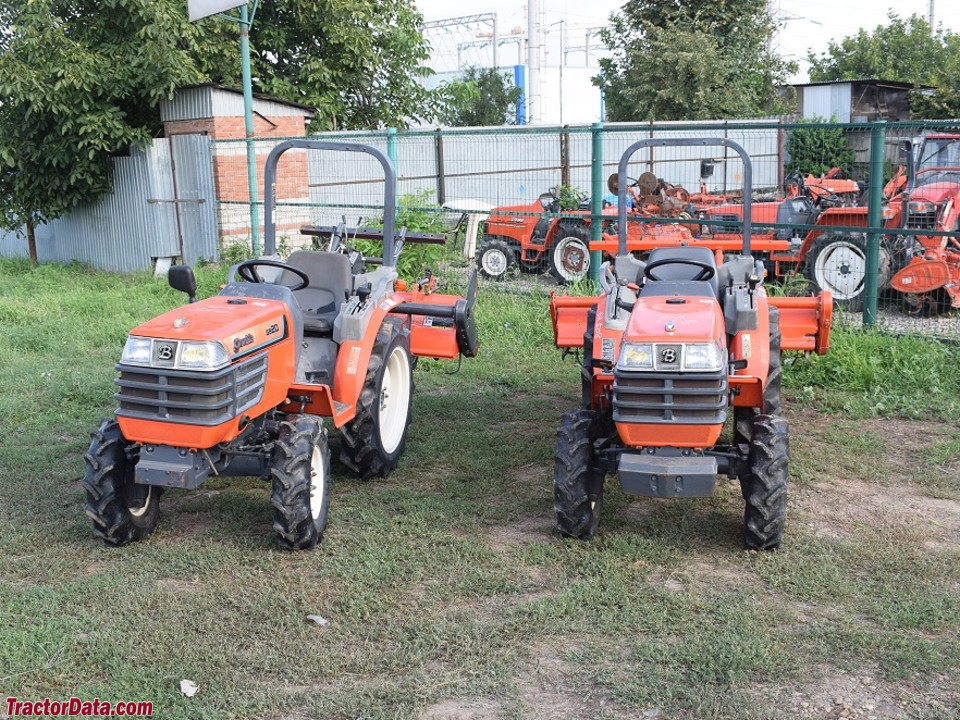

Kubota GB20 tractor photo
1997 - 2001
GB Series
Sub-Compact Utility tractor
Series:GB18GB20
Production
Manufacturer:Kubota
Type:Sub-Compact Utility tractor
Variants
GB20F:Glideshift
Kubota GB20 Power
Engine:19.7 hp
14.7 kW
Kubota GB20 Engine
Kubota 1.1L 3-cyl diesel
Fuel tank:5.3 gal
20.1 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Two-post ROPS.
Transmissions:6-speed gear
 18-speed
Transmission details ...
Tractor hitch
Rear Type:0
Control:position control
Power Take-off (PTO)
Rear RPM:451/769/1207 (1.375)
Dimensions & Tires
Wheelbase:53.2 inches
135 cm
Weight:1543 to 1587 pounds
Front tire:6.00-12
Rear tire:8.3-22
Full dimensions and tires ...
GB20 Serial Numbers
Location:Serial number tag on the right side of the tractor frame, above the front axle.
photo of GB20 serial number

Electrical
Ground:electric
Battery volts:12
