Kubota GL220

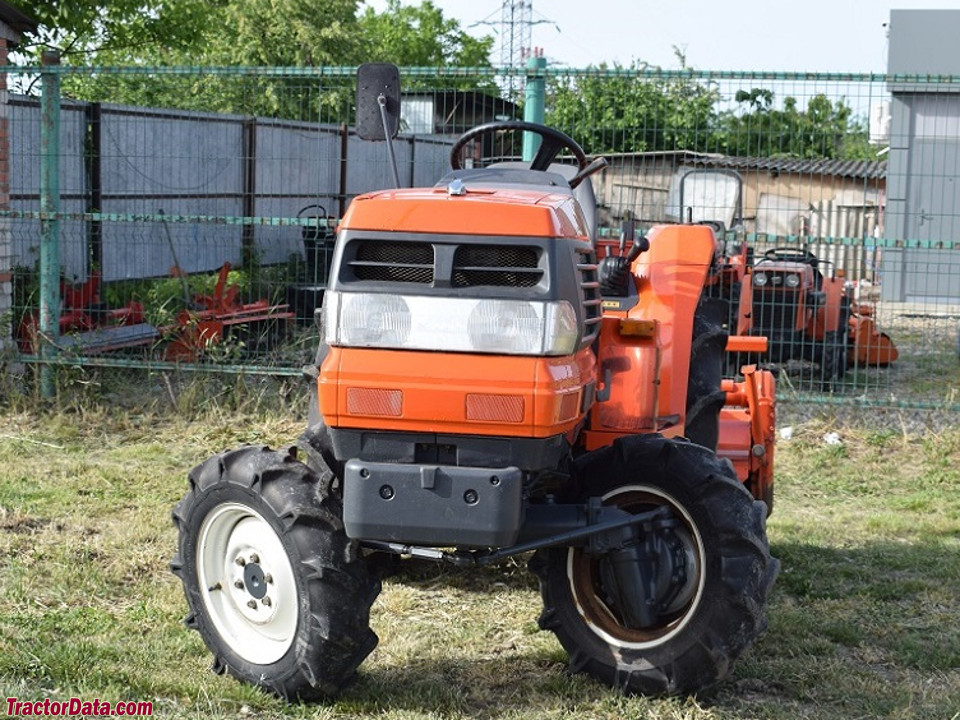

Kubota GL220 tractor photo
1993 - 1995
GL Series
Compact Utility tractor
Series:GL200GL220GL240
GL221
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Variants
GL220:ROPS
GL220Q:cab
Kubota GL220 Power
Engine:21.7 hp
16.2 kW
Kubota GL220 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank:7.1 gal
26.9 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Two-post ROPS. Cab optional.
Transmissions:16-speed gear
 16-speed power shift
Transmission details ...
Tractor hitch
Rear Type:I
Power Take-off (PTO)
Rear RPM:546/772/947/1254 (1.375)
Dimensions & Tires
ROPS Wheelbase:61 inches
154 cm
Cab Wheelbase:62.4 inches
158 cm
Weight:2414 to 2745 pounds
Front tire:6-14
Rear tire:9.5-22
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
