Iseki TG233

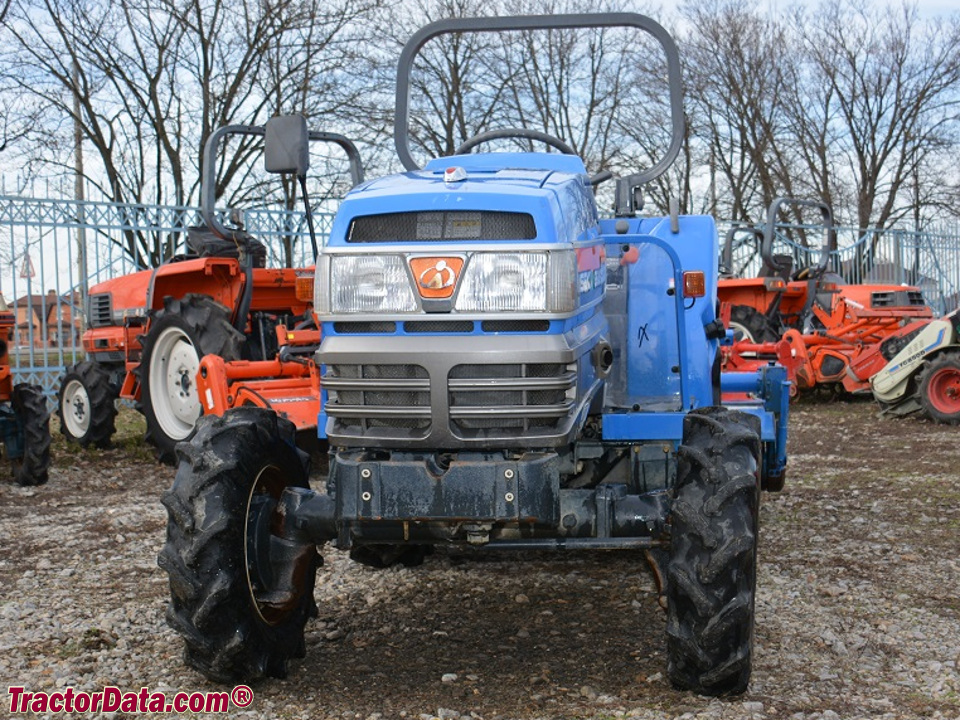

Iseki TG233 tractor photo
???? - 2004
TG Series
Compact Utility tractor
Series map:
TG233
TG253
16.9kw
18.4kw
Production
ManufacturerIseki
Compact Utility tractor
Iseki TG233 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank9.25 gal
35.0 L
Engine details ...
Iseki TG233 Power
Engine22.7 hp
16.9 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.
Tractor hitch
Rear TypeI
Controlposition control
Power Take-off (PTO)
Rear PTO Type577/767/1052/1243 (1.375)
Dimensions & Tires
Wheelbase61.4 inches
155 cm
Weight2646 to 2998 pounds
Front tire6-14
Rear tire9.5-22
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
TG233 references literature
GEAS TG Operator Manual (1690-912-001-0A)
