International Harvester 504 Hi-Clear Transmission


International Harvester 504 Hi-Clear tractor photo
1961 - 1968
High-Clearance tractor
Transmissions overview
5-speed unsynchronized gear
10-speed two-speed power shift
Transmission
Type:unsynchronized gear
Gears:5 forward and 1 reverse
Clutch:267mm dry disc
Speeds
With 12.4-38 rear tires.

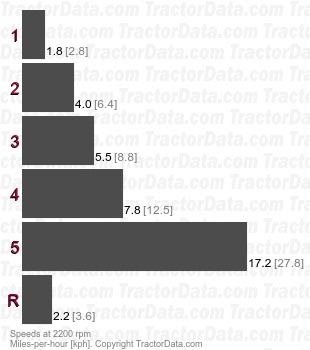

504 Hi-Clear  unsynchronized gear speeds
Transmission
Transmission:Torque Amplifier
Type:two-speed power shift
Gears:10 forward and 2 reverse
Clutch:266.7mm dry disc
Speeds
With 12.4-38 rear tires.

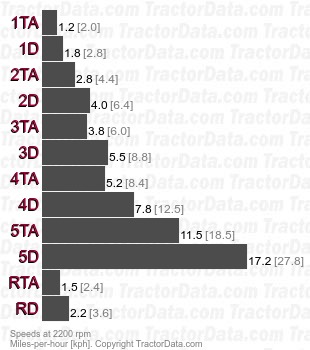

504 Hi-Clear Torque Amplifier two-speed power shift speeds
