Tractors > Nuffield > DM-4 Universal

Nuffield DM-4 Universal Tests



Nuffield DM-4 Universal tractor photo
1950 - 1961
Model year
Utility tractor
Nebraska Tractor Test 558

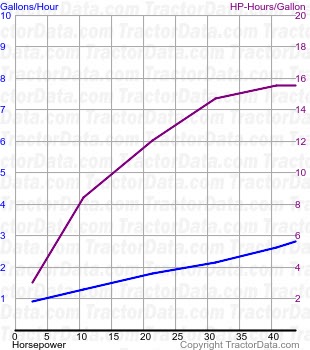

DM-4 Universal fuel use from test 558
Nebraska Tractor Test 558
Morris diesel 5-speed 2WD
August 27 - September 5, 1955
Link: Nebraska Tractor Test 558 file
PTO performance
Power at rated engine speed45.27 hp
33.8 kW
Fuel use3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power39.44 hp
29.4 kW
Gear 3 used for power test.
Max pull5372 lbs
2436 kg
Gear 1 used for pull test.
