Nuffield DM-4 Universal Engine
|
|
| Engine Detail | |
| BMC OEA/2 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement | 208 ci 3.4 L |
| Bore/Stroke | 3.74x4.724 inches 95 x 120 mm |
| Power | 45 hp 33.6 kW |
| Fuel system | direct injection |
| Air cleaner | oil bath |
| Compression | 16.5:1 |
| Rated RPM | 2000 |
| Torque | 223.3 lb-ft 302.8 Nm |
| Torque RPM | 1329 |
| Starter volts | 12 |
| Oil capacity | 9 qts 8.5 L |
| Coolant capacity | 16.2 qts 15.3 L |

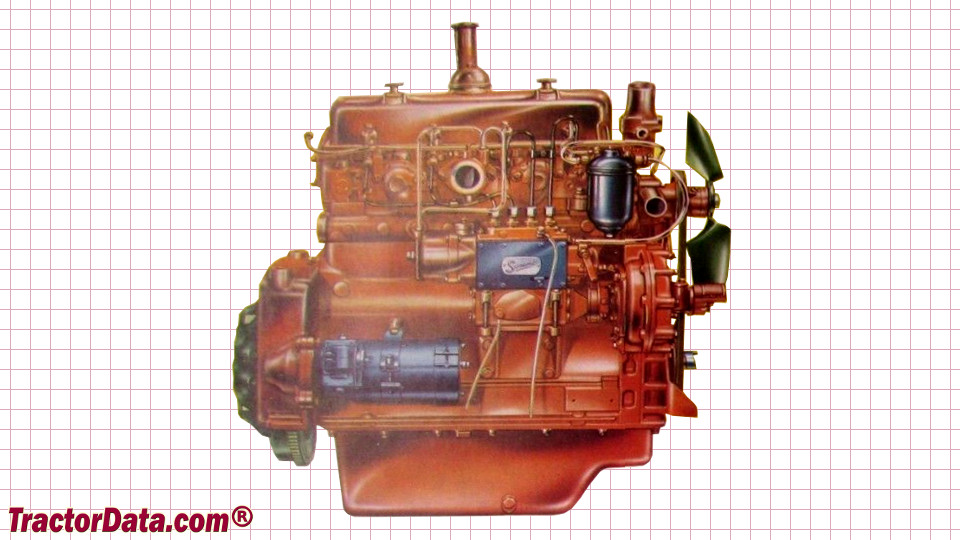

| Nuffield DM-4 Engine | |
 |
