John Deere 630 Standard
|
|
| Production | |
| Manufacturer | John Deere |
| Standard-tread tractor | |
| Built in Waterloo, Iowa, USA | |
| Total built | 734 (total) |
| 704 (gas) | |
| 16 (LP-Gas) | |
| 14 (all-fuel) | |
| Original price was $3,170 in 1958 | |
| John Deere 630 Standard Engines | |
| John Deere 5.0L 2-cyl gasoline | |
| John Deere 5.0L 2-cyl all-fuel | |
| John Deere 5.0L 2-cyl LP gas | |
| Fuel tank | 20.5 gal (all-fuel) 77.6 L |
| 22.25 gal (gasoline) 84.2 L | |
| 33 gal (LP gas) 124.9 L | |
| Aux. fuel | 1 gal 3.8 L |
 Engine details ... | |
| John Deere 630 Standard Transmission | |
| 6-speed unsynchronized gear | |
 Transmission details ... |
| John Deere 630 Standard Power | |
| Drawbar (claimed) | 44 hp 32.8 kW |
| PTO (claimed) | 48 hp 35.8 kW |
| Plows | 4 |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Steering | power OptOptional |
| Differential mechanical drum brakes | |
| Open operator station. | |
| Hydraulics | |
| Pressure | 1200 psi 82.7 bar |
| Valves | 1 or 2 |
| Pump flow | 8.9 gpm 33.7 lpm |
| Tractor hitch | |
| Rear Type | II |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 80.5 inches 204 cm |
| Weight | 6480 lbs 2939 kg |
| Front tire | 6.00-16 |
| Rear tire | 13-30 |
 Full dimensions and tires ... | |

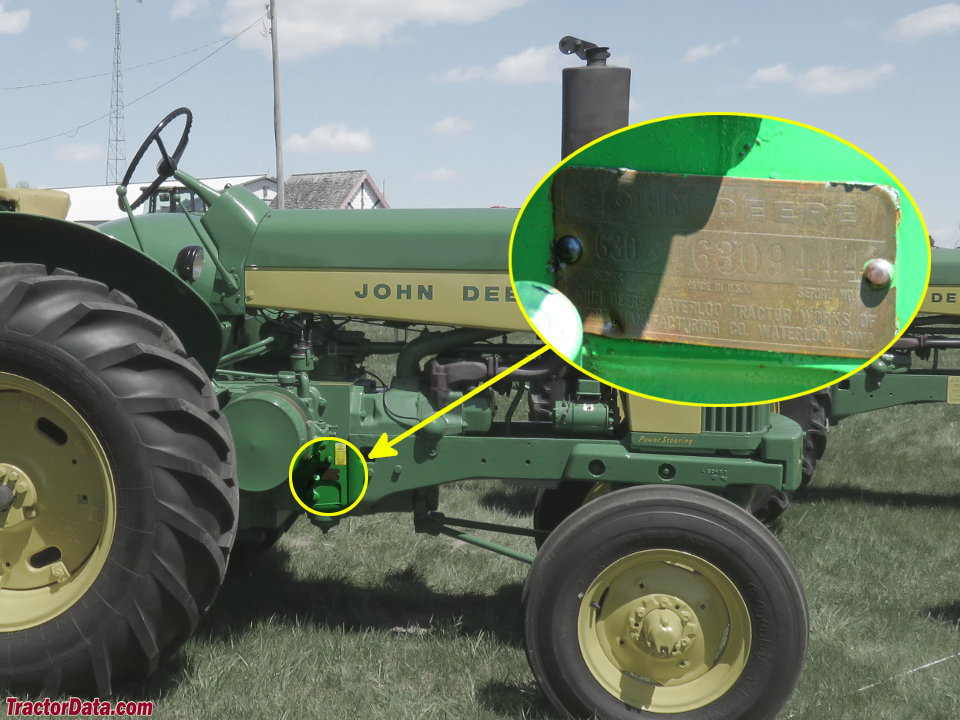

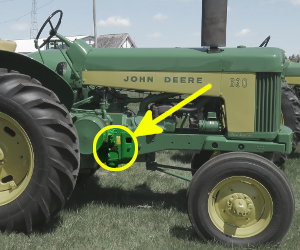

| 630 Standard Serial Number Location | |
 | |
| Serial number plate on the right side of the 630 Standard tractor frame, below the belt pulley. |
| 630 Standard Serial Numbers | |
| 1958 | 6300000 |
| 1959 | 6302749 |
| 1960 | 6314381 |
| Final | 6317253 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 12.8 inches 32 cm |
| Width | 7.375 inches 18 cm |
| RPM | 1125 |
| Speed | 3775 ft/min 1150.62 meters/min |
| Electrical | |
| Ground | positive |
| Batteries | 2 |
| Battery volts | 6 |
| References | |
 | |
| The John Deere 30 Series by J.R. Hobbs |
