Tractors > New Holland > T7.315

New Holland T7.315



New Holland T7.315 tractor photo
2016 -
T7 Series
Row-Crop tractor
Series map:
T7.290
T7.315
270.0hp
300.0hp
Production
ManufacturerNew Holland (a part of CNH)
Row-Crop tractor
Built in St. Valentin, Austria
Original price was $286,404 in 2017
Variants
Optum 300similar CaseIH model
New Holland T7.315 Engine
FPT 6.7L 6-cyl diesel
Fuel tank166 gal
628.3 L
Exhaust fluid (DEF)25 gal
94.6 L
Engine details ...
New Holland T7.315 Transmission
continuously-variable transmission (CVT)
Transmission details ...
New Holland T7.315 Power
Engine (gross)300 hp
223.7 kW
Engine (max)313 hp
233.4 kW
PTO (claimed)270 hp
201.3 kW
Drawbar (tested)226.5 hp
168.9 kW
PTO (tested)290.7 hp
216.8 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesinboard planetary
Power steering
Wet disc brakes
Cab standard with air-conditioning. Optional Comfort Ride cab suspension.
Photos

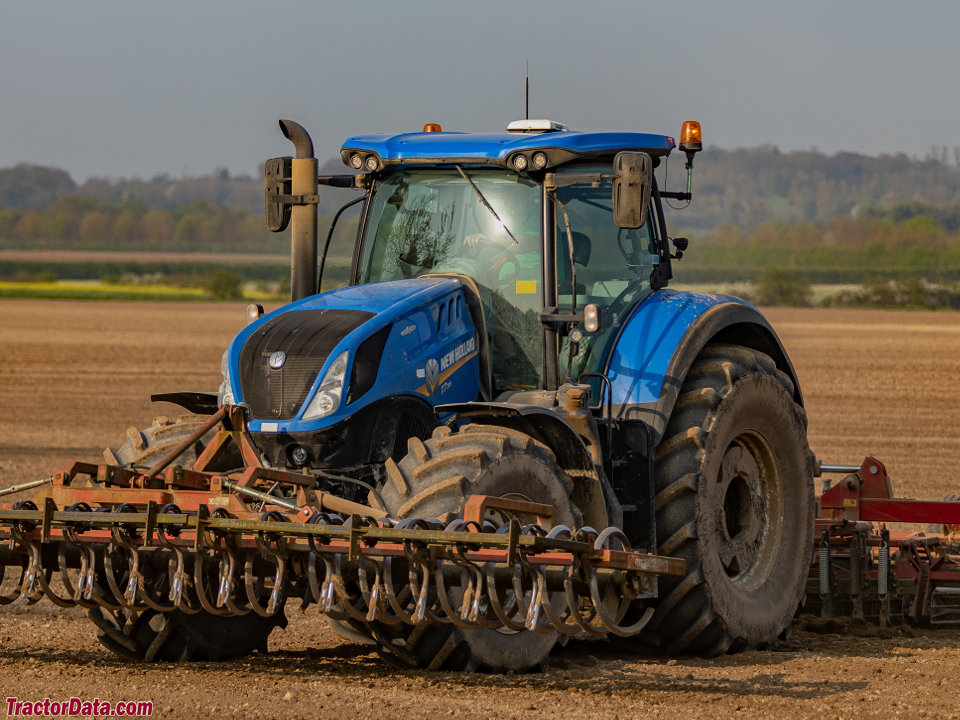

New Holland T7.315 row-crop tractor, front-left view.
New Holland T7.315 photos...
Hydraulics
Typeclosed center load-sensing
Rear valves4 or 5
Mid valves3 OptOptional
Pump flow43.5 gpm
164.6 lpm
 58 gpm*Optional MegaFlow
219.5 lpm
Tractor hitch
Rear TypeIII
 IVN OptOptional
Controlelectronic lower-link draft control
Rear lift (at 24"/610mm)19180 lbs
8700 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Engine RPM540@1930
 540E@1598
 1000@1853
 1000E@1583
Front PTOindependent OptOptional
Front PTO Type1000
Dimensions & Tires
Wheelbase117.9 inches
299 cm
Weight22707 lbs
10299 kg
Front tire420/85R24
Rear tire480/80R50
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps150
 200 OptOptional
Battery volts12
