Tractors > RK Tractors > RK24H

RK Tractors RK24H Attachments



RK Tractors RK24H tractor photo
2017 -
Sub-Compact Utility tractor
TYM built
Series map:
RK19H
RK24H
19.0hp
24.0hp
Attachment overview
60" mid-mount mower deck
Front-end loader
Backhoe
60" Mower deck
Typemid-mount RK Tractors M60
 3-blade
Cutting width60 inches
152 cm
Weight272 lbs
123 kg
Cut height1 to 4 inch
2 to 10 cm

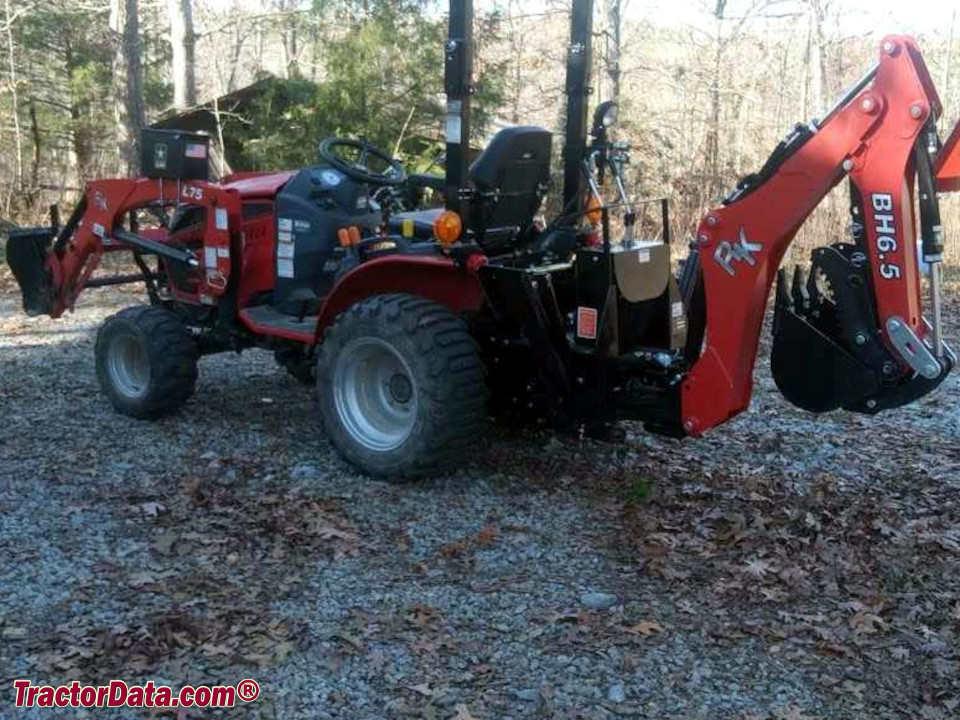

RK24H with BH6.5 backhoe and L75 front-end loader.
RK24H with BH6.5 backhoe and L75 front-end loader.
Photos courtesy of Tommy Ivison
L75 Loader
947 lbs lift (full at pin)
429 kg
1680 lbs breakout (at pin)
762 kg
38° dump
24.9 inches reach (dumped)
63 cm
51.3 inches reach (ground)
130 cm
20° rollback
75.3 inches height (at pin)
191 cm
57.4 inches clearance (dumped)
145 cm
Attachment: pin-on
weight: 481 lbs
218 kg
Bucket width: 50 inches
127 cm
RK Tractors BH6.5 Backhoe
Backhoe typeRK Tractors BH6.5 Backhoe
Weight725 lbs
328 kg
Transport height66 inches
167 cm
Bucket width6 inches
15 cm
 12 inches
30 cm
 16 inches
40 cm
 18 inches
45 cm
2-Foot flat digging depth77 inches
195 cm
Reach from pivot98 inches
248 cm
Loading height60 inches
152 cm
Bucket Rotation185°
Swing Arc140°
Bucket force2050 lbs
929 kg
Dipperstick force1256 lbs
569 kg
