Cletrac E
|
|
| Production | |
| Manufacturer | Cletrac |
| Agricultural Crawler tractor | |
| Built in Cleveland, Ohio, USA | |
| Cletrac E Engine | |
| Hercules 3.7L 4-cyl gasoline | |
| Fuel tank | 18 gal 68.1 L |
 Engine details ... | |
| Cletrac E Transmission | |
| 3-speed gear | |
 Transmission details ... |
| Cletrac E Power | |
| Drawbar (claimed) | 24.6 hp 18.3 kW |
| Belt (claimed) | 29 hp 21.6 kW |
| Drawbar (tested) | 20.47 hp 15.3 kW |
| Belt (tested) | 28.76 hp 21.4 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Final drives | spur gear |
| Open operator station. | |

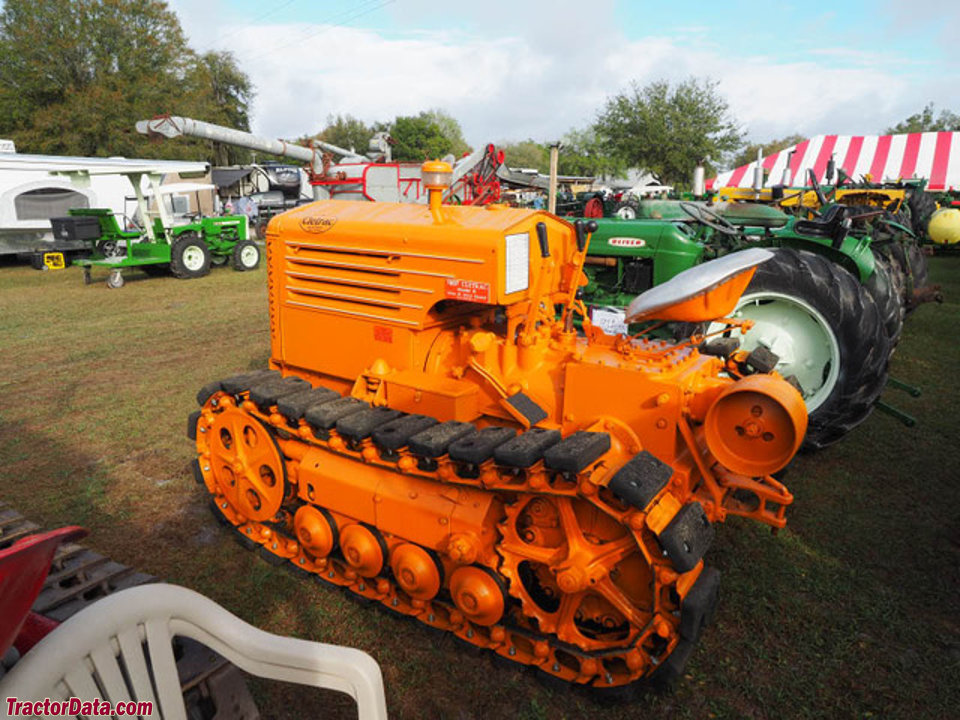

| Photos | |
 | |
 Cletrac E photos... | |
| Power Take-off (PTO) | |
| Rear PTO | optional |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tracks | |
| Weight | 4950 to 6100 pounds |
| 13-inch tracks | |
 Full dimensions and tracks ... | |
| E Serial Numbers | |
| 1934 | 1A00 |
| 1935 | 1A08 |
| 1936 | 1A80 |
| 1937 | 3A000 |
| 1938 | 4A842 |
| 1939 | 5A072 |
| 1940 | 5A242 |
| 1941 | 5A315 |
| Final | 5A330 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 10.5 inches 26 cm |
| Width | 8.5 inches 21 cm |
| RPM | 1085 |
| Speed | 2985 ft/min 909.83 meters/min |
