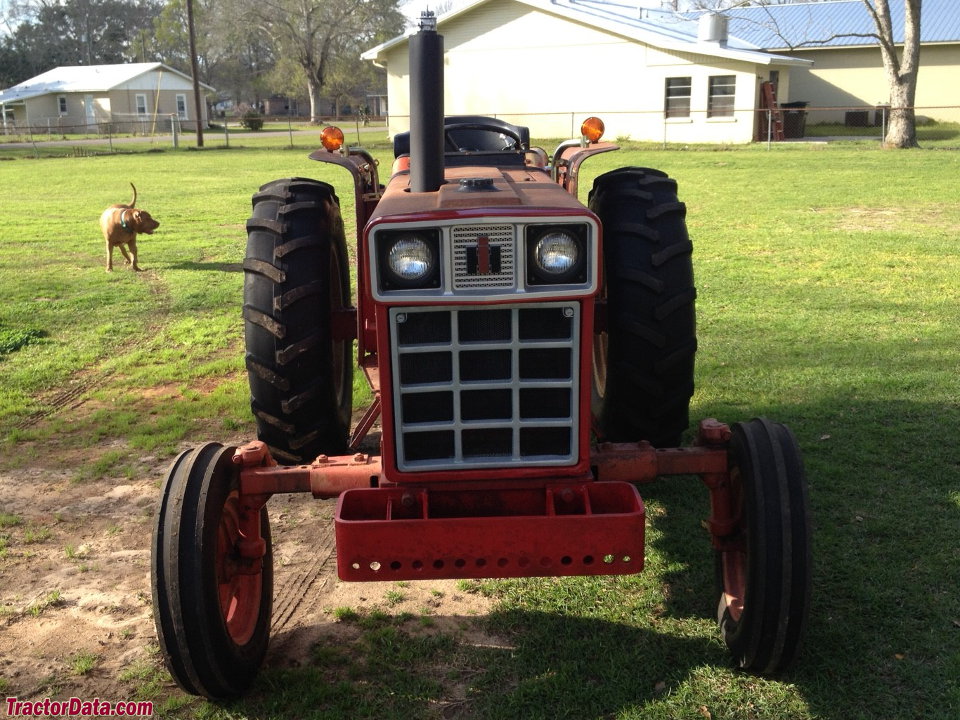

International Harvester 385
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| International Harvester 385 Power |
| Engine (gross): | 46 hp
34.3 kW
|
| Engine (net): | 43 hp
32.1 kW
|
| PTO (claimed): | 35 hp
26.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post fixed ROPS. Cab available in Europe.
|
| Transmissions: | 8-speed synchromesh
|
| | 8-speed shuttle
|
 Transmission details ... |
| Capacity |
| Fuel: | 20 gal
75.7 L
|
| Hydraulic system: | 9 gal
34.1 L
|
| Hydraulics |
| Capacity: | 9 gal
34.1 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 0 to 2
|
| Pump flow: | 11.3 gpm
42.8 lpm
|
| Steering flow: | 2.5 gpm
9.5 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| 385 Serial Numbers |
| Location: | Serial number plate on the right side of the 385 frame, above the front axle.
|
photo of 385 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| Battery volts: | 12
|
| Battery AH: | 93
|
