Massey Ferguson 135 Special Engine
|
|
| Engine options | |
| Continental 2.2L 4-cyl gasoline | |
| Continental 2.4L 4-cyl gasoline | |
| Perkins 2.5L 3-cyl gasoline |
| Engine Detail | |
| Continental Z-134 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 134 ci 2.2 L |
| Bore/Stroke | 3.312x3.875 inches 84 x 98 mm |
| Power | 39 hp 29.1 kW |
| Compression | 6.6:1 |
| Rated RPM | 2200 |
| Idle RPM | 450-2200 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Oil capacity | 6 qts 5.7 L |
| Sparkplug | Champion D-16 |
| AC 85 S | |
| Auto Lite BT-8 | |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.022 inches 0.559 mm |
| Intake valve clearance | 0.013 inches*Hot 0.330 mm |
| Exhaust valve clearance | 0.013 inches*Hot 0.330 mm |
| Engine Detail | |
| Continental Z-145 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| When equipped with the Z-145 engine, the Massey 135 was advertised as 35 PTO horsepower. | |
| Displacement | 145 ci 2.4 L |
| Bore/Stroke | 3.375x4.062 inches 86 x 103 mm |
| Compression | 7.1:1 |
| Rated RPM | 2000 |
| Firing order | 1-3-4-2 |
| Sparkplug | Champion D-16 |
| AC 85 S | |
| Auto Lite BT-8 | |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.022 inches 0.559 mm |
| Intake valve clearance | 0.013 inches (hot) 0.330 mm |
| Exhaust valve clearance | 0.013 inches (hot) 0.330 mm |

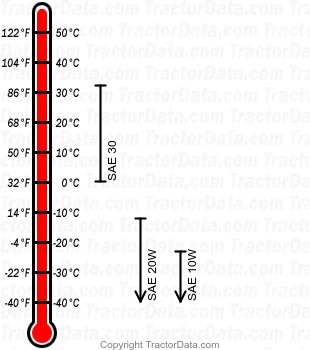

| Engine Oil | |
| |
| Oil capacity | 6 qts 5.7 L |
| Engine Detail | |
| Perkins AG3.152 | |
| gasoline | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 152.7 ci 2.5 L |
| Bore/Stroke | 3.60x5.00 inches 91 x 127 mm |
| Power | 45.5 hp 33.9 kW |
| Compression | 7.5:1 |
| Rated RPM | 2000 |
