Kubota BX1880
| | 2017 - |
| BX80 Series | | Compact Utility tractor |
|
Series map:
BX1880
BX2380
18.0hp
23.0hp
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Original price was $9,999 in 2017 |
| Kubota BX1880 Power |
| Engine | 18 hp
13.4 kW
|
| PTO (claimed) | 13.7 hp
10.2 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post foldable ROPS. |
| Hydraulics |
| Pump flow | 6.2 gpm
23.5 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at 24"/610mm) | 680 lbs
308 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO Type | 2500
|

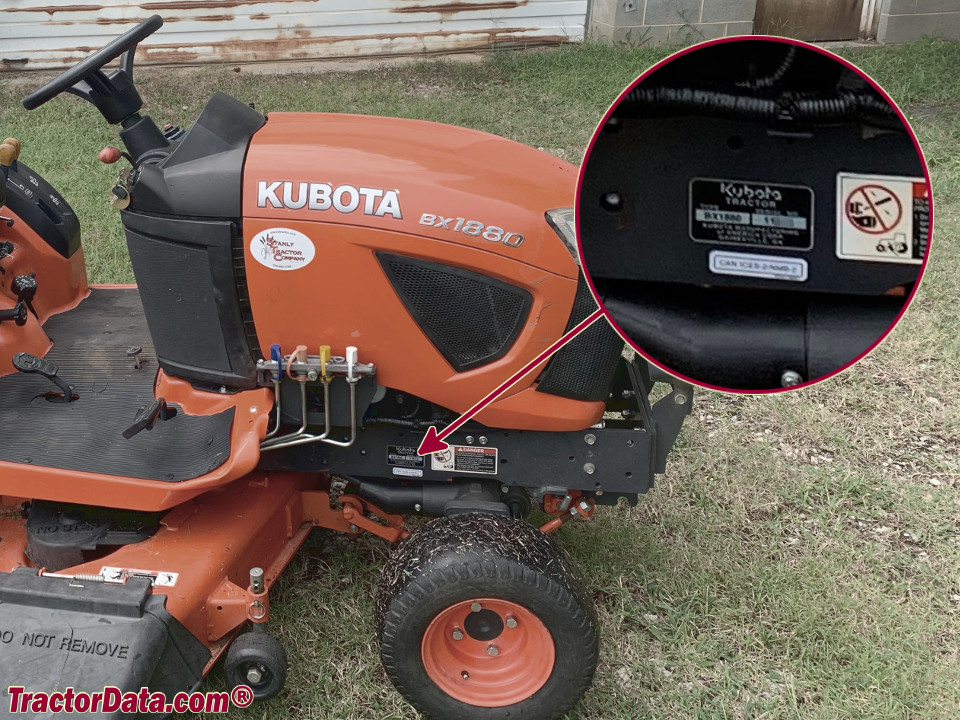

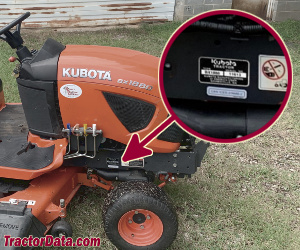

| BX1880 Serial Number Location |
 |
| Serial number on the right side of the BX1880 frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
