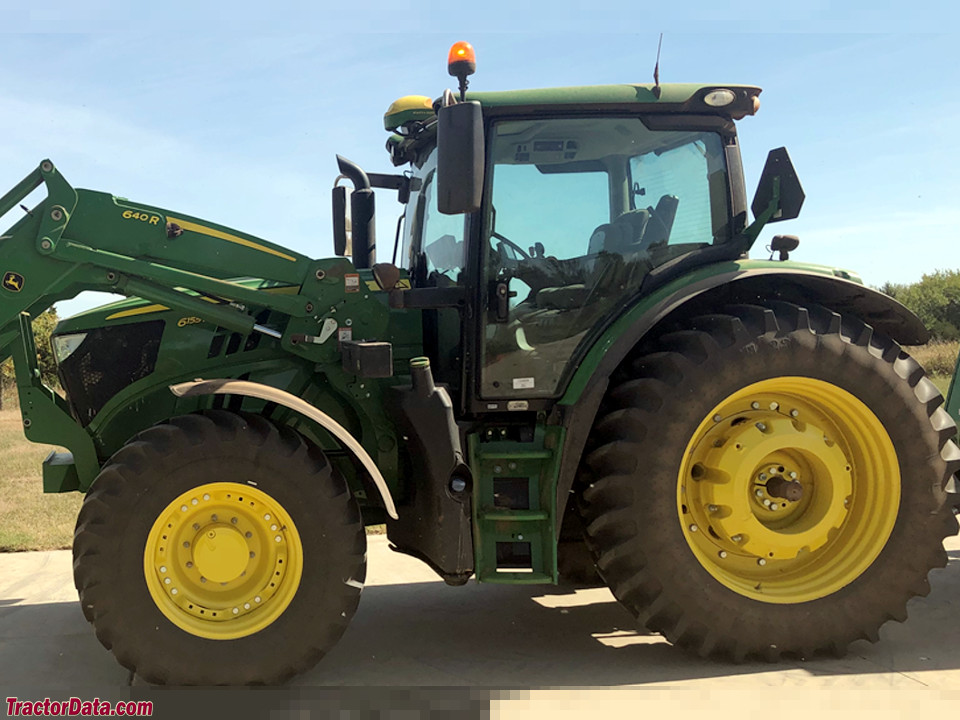

John Deere 6155R
|
|
| Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
| Original price: | $161,542 (2020 ) |
| Variants | |
| 6155RH: | high-crop |
| John Deere 6155R Power | |
| Engine (gross): | 155 hp 115.6 kW |
| Engine (max): | 168 hp 125.3 kW |
| PTO (claimed): | 121 hp 90.2 kW |
| Drawbar (tested): | 123.38 hp 92.0 kW |
| PTO (tested): | 151.66 hp 113.1 kW |
| John Deere 6155R Engine | |
| John Deere 6.8L 6-cyl diesel | |
| Fuel tank: | 71.3 gal 269.9 L |
| Exhaust fluid (DEF): | 4.2 gal 15.9 L |
 Engine details ... | |
| Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | electrohydraulic front and rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 16-speed partial power shift |
| 20-speed partial power shift | |
| 24-speed eight-speed power shift | |
| infinitely variable transmission (IVT) | |
 Transmission details ... | |
| Photos | |
 | |
 John Deere 6155R photos... | |
| Hydraulics | |
| Type: | closed-center pressure and flow compensated |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 2 to 4 |
| Pump flow: | 30.1 gpm 113.9 lpm |
| SCV flow: | 26.4 gpm 99.9 lpm |
| Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electronic lower link draft sensing |
| Rear lift: | 9193 lbs 4169 kg |
| Drawbar: | Cat. 2 |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electrohydraulic |
| Dimensions & Tires | |
| 2WD Wheelbase: | 117.5 inches 298 cm |
| 4WD Wheelbase: | 108.9 inches 276 cm |
| Weight: | 17028 lbs 7723 kg |
| Front tire: | 11.00-20 |
| 2WD Rear tire: | 480/80R46 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| 240*Optional | |
| Charging volts: | 14 |
| Batteries: | 2 |
| Battery CCA: | 600 |
| Battery volts: | 12 |
