| | 2003 - 2005 |
| TS-A Series | | Utility tractor |
|
Series map:
TS130A
TS135A
131.0hp
135.0hp
| Transmission options |
| 24-speed two-speed power shift |
| 16-speed four-speed power shift |
| Transmission |
| Transmission | Dual Command
|
| Type | two-speed power shift
|
| Gears | 24 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four gears in three ranges with shuttle lever and an additional powershift button on the gear lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range. |
| Transmission |

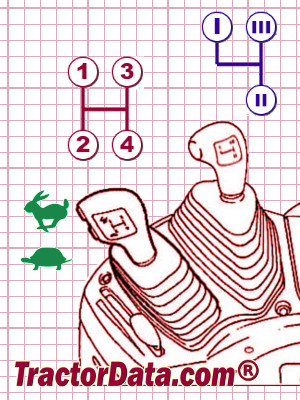

| Transmission | Electro Command
|
| Type | four-speed power shift
|
| Gears | 16 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Four gears in four ranges. Push-button shifting between gears. Clutchless shifting between ranges A-B and ranges C-D. Computer-controlled Autoshift. |
