Massey Ferguson 383
| | 1987 - 1994 |
| 303 Series | | Utility tractor |
|
Series map:
373
383
393
46.0kw
52.0kw
59.0kw
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Built in Italy |
| Variants |
| 7870 | similar Landini model
|
| Massey Ferguson 383 Power |
| Engine | 69.7 hp
52.0 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Photos |
| No photos of the Massey Ferguson 383 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 21.1 gal
79.9 L
|
| Hydraulic system | 8.7 gal
32.9 L
|
| Hydraulics |
| Capacity | 8.7 gal
32.9 L
|
| Total flow | 9.8 gpm
37.1 lpm
|
| Tractor hitch |
| Rear lift | 5732 lbs
2600 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@1944
|
| | 750@1934
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|

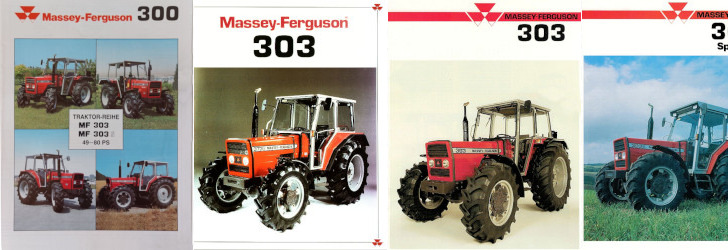

| References |
 |
| MF 303 Series published in 1988, by Massey Ferguson |
| 303 published in 1989, by Massey Ferguson |
| 303 published in 1990, by Massey Ferguson |
| 303 Special published in 1990, by Massey Ferguson |
| Page information |
 |
| Copyright 2026 TractorData.com® |
| Email me: Peter@TractorData.com |
| TractorData is a family-owned small business located in Minnesota. I have been researching tractor history and providing specifications for free since 1999. |
| Peter Easterlund - owner/author |
| This machine's data modified on May 12, 2026 |
