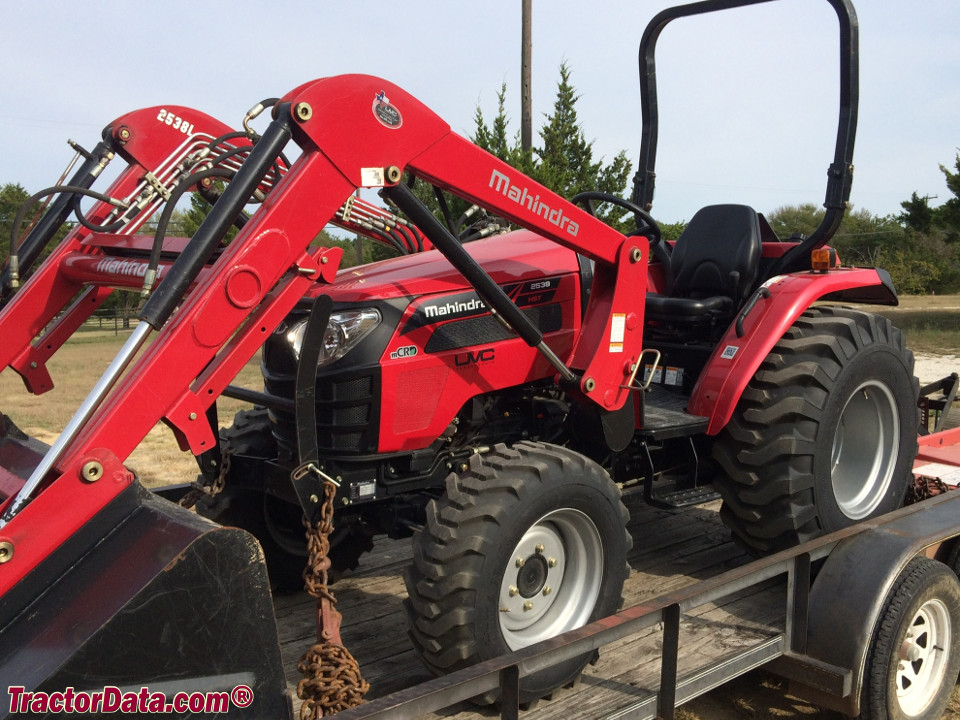

Mahindra 2538
| | 2016 - |
| 2500 Series | | Compact Utility tractor | | TYM built |
|
Series map:
2538
2540
37.4hp
40.0hp
| Production |
| Distributor | Mahindra
|
| Manufacturer | TYM
|
| Compact Utility tractor |
| Original price | $20,790 (2016 ROPS )
|
| $28,220 (2016 Cab )
|
| Mahindra 2538 Power |
| Engine | 37.4 hp
27.9 kW
|
| PTO (claimed) | 31 hp
23.1 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post foldable ROPS. Cab optional with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Rear valves | 1 or 2
|
| Pump flow | 7.6 gpm
28.8 lpm
|
| Steering flow | 4.1 gpm
15.5 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift | 2646 lbs
1200 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2400
|
| Electrical |
| Charging system | alternator
|
| ROPS Charging amps | 45
|
| Cab Charging amps | 90
|
| Charging volts | 12
|
| Battery CCA | 800
|
| Battery volts | 12
|
| Battery AH | 80
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 27, 2021 |
