John Deere 6175M Transmission


John Deere 6175M tractor photo
2015 - 2022
Model year
6M Series
Row-Crop tractor
6170M
Series:6155M6175M6195M
Transmissions overview
16-speed four-speed power shift
20-speed four-speed power shift
Transmission
Transmission:PowrQuad PLUS
Type:four-speed power shift
Gears:16 forward and reverse
Clutch:wet disc
Four push-button gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle lever and push-button clutch.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.
6175M PowrQuad PLUS four-speed power shift speeds
Transmission
Transmission:PowrQuad
Type:four-speed power shift
Gears:20 forward and reverse
Clutch:wet disc
Four power-shift gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

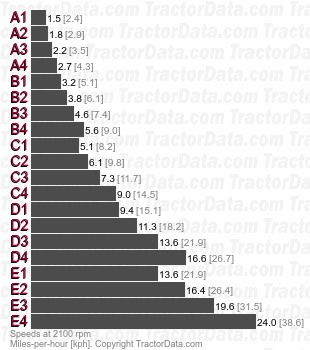

6175M PowrQuad four-speed power shift speeds
Transmission
Transmission:AutoQuad PLUS
Type:four-speed power shift
Gears:20 forward and reverse
Clutch:wet disc
Four push-button gears (1-4) in five synchronized ranges (A-F) with left-hand power shuttle lever. AutoShift mode enables programmable automatic gear shifting.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.
6175M AutoQuad PLUS four-speed power shift speeds
