John Deere 6120M
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Built in Mannheim, Baden-Württemberg, Germany | |
| John Deere 6120M Engine | |
| John Deere 4.5L 4-cyl diesel | |
| Fuel tank | 51 gal 193.0 L |
| Exhaust fluid (DEF) | 3.4 gal 12.9 L |
 Engine details ... | |
| John Deere 6120M Transmissions | |
| 12-speed | |
| 16-speed four-speed power shift | |
| 24-speed four-speed power shift | |
 Transmission details ... |
| John Deere 6120M Power | |
| Engine (gross) | 120 hp 89.5 kW |
| Engine (max) | 127 hp 94.7 kW |
| PTO (claimed) | 94 hp 70.1 kW |
| Drawbar (tested) | 91.5 hp 68.2 kW |
| PTO (tested) | 105.2 hp 78.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditoning. Two-post folding ROPS available. | |

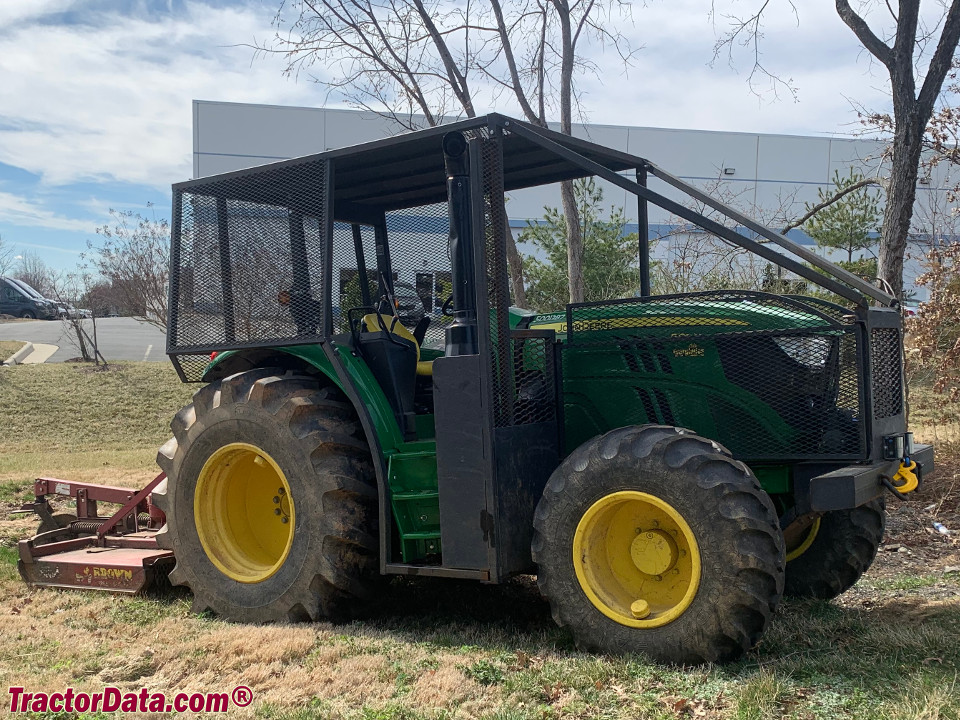

| Photos | |
 | |
 John Deere 6120M photos... | |
| Hydraulics | |
| Type | open center |
| closed-center pressure-and-flow compensated load sensing OptOptional | |
| Pressure | 2900 psi 200.0 bar |
| Rear valves | 3 OptOptional |
| Mid valves | 3 OptOptional |
| Pump flow | 21.1 gpm 79.9 lpm |
| 30 gpm*Pressure-flow compensated option. 113.6 lpm | |
| SCV flow | 21.1 gpm 79.9 lpm |
| Tractor hitch | |
| Rear Type | IIIN/II |
| Control | electronic lower-link draft sensing |
| Rear lift | 5582 lbs 2531 kg |
| 7431 lbsOptOptional 3370 kg | |
| Drawbar | Cat. 2 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| 540 | |
| Engine RPM | 540@1932 |
| 1000@1932 | |
| Dimensions & Tires | |
| Wheelbase | 101.6 inches 258 cm |
| Weight | 11486 lbs 5210 kg |
| Front tire | 10.00-16 |
| 2WD Rear tire | 460/85R38 |
 Full dimensions and tires ... | |
| John Deere 6120M attachments | |
| front-end loader | |
 Attachment details ... |
| 6120M Serial Number Location | |
 | |
| Serial number plate on the right side of the tractor frame, above and to the rear of the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| 200 *Optional with cab. | |
| Charging volts | 14 |
| Battery volts | 12 |
| References | |
 | |
| 6M Series Tractors published in 2016, by John Deere |
