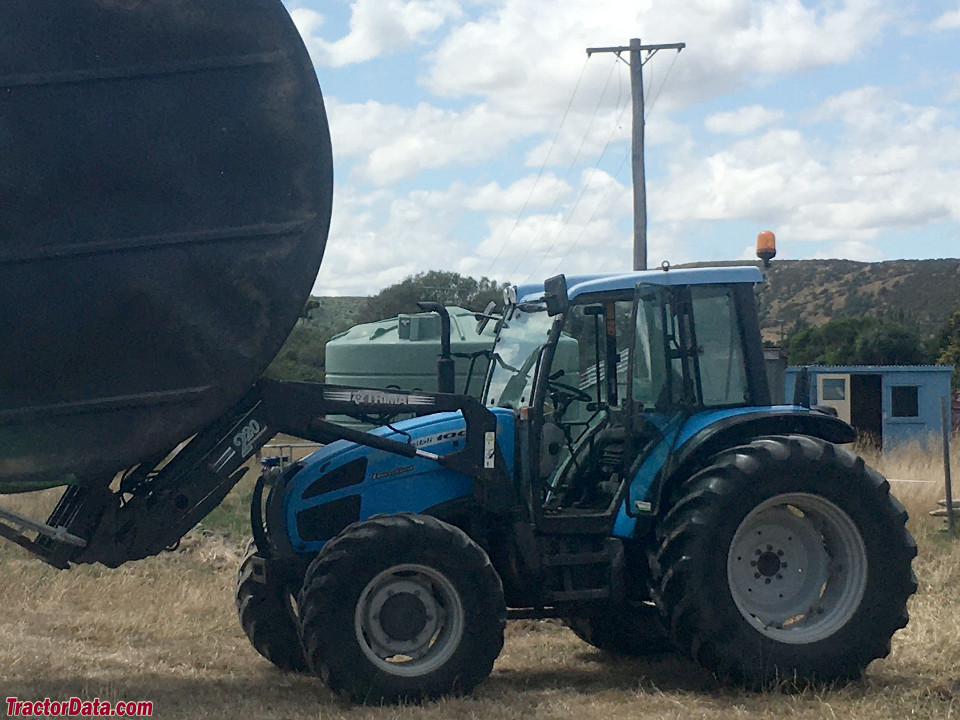

Landini Ghibli 100
| 2000 - 2003 |
Ghibli Series | Utility tractor |
|
Production |
Manufacturer: | Landini (a part of Argo)
|
Type: | Utility tractor
|
Variants |
Atlantis 100: | economy
|
Ghibli 100: | deluxe
|
Landini Ghibli 100 Power |
Engine: | 93 hp 69.4 kW
|
PTO (claimed): | 87 hp 64.9 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Differential lock: | electro-hydraulic front and rear
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Cab standard with air-conditioning.
|
Transmissions: | 12-speed shuttle
|
| 24-speed shuttle with creeper
|
| 24-speed shuttle with overdrive
|
Transmission details ... |
Hydraulics |
Pressure: | 2610 psi 180.0 bar
|
Valves: | 2
|
Pump flow: | 14.2 gpm 53.7 lpm
|
Total flow: | 20.6 gpm 78.0 lpm
|
Steering flow: | 6.3 gpm 23.8 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift: | 5732 lbs 2600 kg
|
| 9590 lbs 4350 kg *Optional
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/750 (1.375)
|
| 540/1000 (1.375)
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Battery volts: | 12
|
Page information |
Last update: | July 22, 2020
|
Copyright: | Copyright 2021 TractorData LLC
|
Contact: | Peter@TractorData.com
|
