Tractors > CaseIH > Farmall 120A

CaseIH Farmall 120A Tests



CaseIH Farmall 120A tractor photo
2012 - 2025
Model year
Farmall 100A Series
Utility tractor
Series map:
Farmalll 110A
Farmall 120A
Farmall 130A
110.0hp
120.0hp
130.0hp
OCED Tractor Test 2157

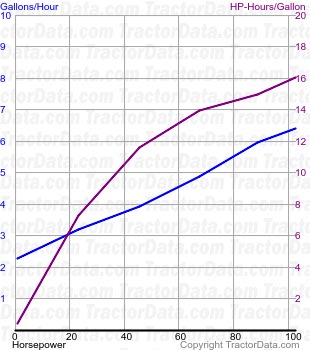

Farmall 120A fuel use from test 1038
OCED Tractor Test 2157
Diesel 16-speed 4WD
September 7 - 9, 2016
Link: OCED Tractor Test 2157 file
PTO performance
Power at rated engine speed102.55 hp
76.5 kW
Fuel use6.4 gal/hour
24.2 l/hour
Power at rated PTO speed104.24 hp
77.7 kW
Fuel use5.9 gal/hour
22.3 l/hour
Drawbar performance
Max power87.99 hp
65.6 kW
Fuel use6.4 gal/hour
24.2 l/hour
Max pull8821 lbs
4001 kg
