McCormick Intl GM45

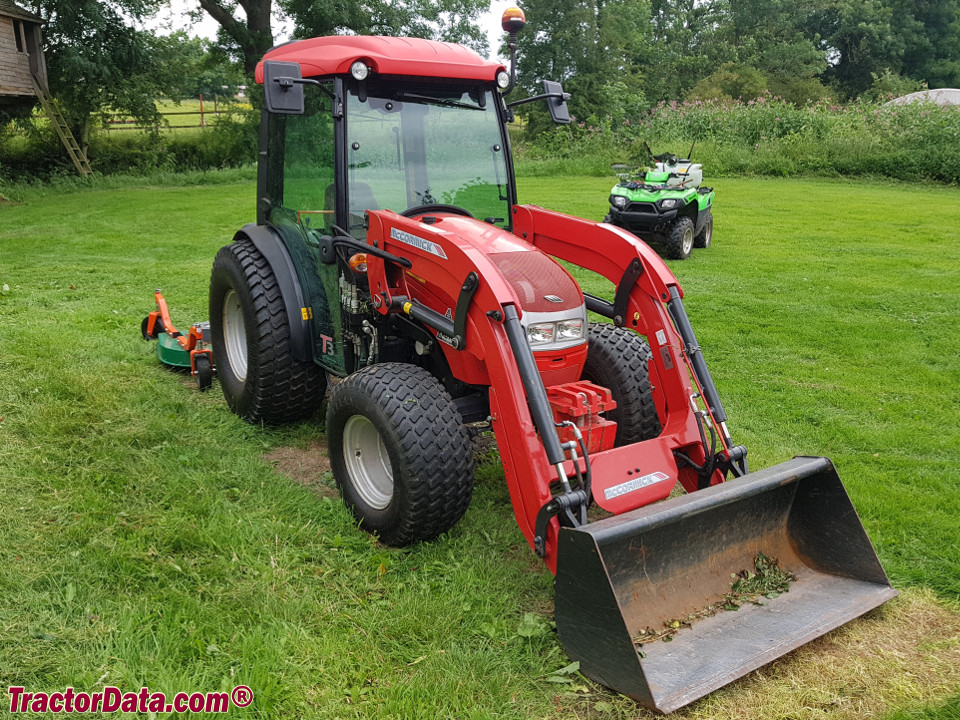

McCormick Intl GM45 tractor photo
2011 -
GM Series
Compact Utility tractor
Series:GM40GM45GM50
Production
Manufacturer:McCormick Intl (a part of Argo)
Type:Compact Utility tractor
McCormick Intl GM45 Power
Engine:44 hp
32.8 kW
PTO (claimed):40 hp
29.8 kW
Mechanical
Chassis:4x4 MFWD 4WD
Brakes:mechanical wet disc
Cab:Two-post folding ROPS. Cab available with air-conditioning.
Transmissions:12-speed
 16-speed creeper
Transmission details ...
Hydraulics
Pressure:2611 psi
180.0 bar
Valves:2
SCV flow:7.4 gpm
28.0 lpm
Total flow:12.6 gpm
47.7 lpm
Tractor hitch
Rear Type:I
Rear lift:2646 lbs
1200 kg
Front Hitch:IN*Optional
Front lift:882 lbs
400 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:mechanical
Rear RPM:540/750/ground
Front PTO:independent*Optional
Clutch:mechanical
Front RPM:1000 (1.375)
Dimensions & Tires
Wheelbase:66.9 inches
169 cm
Weight:3197 lbs
1450 kg
Front tire:240/70R16
Rear tire:360/70R20
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
