New Holland T6.165
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Row-Crop tractor | |
| Original price | $111,600 (2015 Value ) |
| $122,446 (2015 Elite ) | |
| Variants | |
| T6.165 Value | economy |
| T6.165 Plus | mid-spec |
| T6.165 Elite | premium |
| T6.165 CVT | AutoCommand |
| New Holland T6.165 Engine | |
| FPT 4.5L 4-cyl diesel | |
| Fuel tank | 52.5 gal 198.7 L |
| 58.6 gal*With auxiliary tank. 221.8 L | |
| Exhaust fluid (DEF) | 9.7 gal 36.7 L |
 Engine details ... | |
| New Holland T6.165 Transmissions | |
| 16-speed partial power shift | |
| 16-speed | |
| 32-speed | |
 Transmission details ... |
| New Holland T6.165 Power | |
| Engine | 135 hp 100.7 kW |
| PTO (claimed) | 110 hp 82.0 kW |
| Drawbar (tested) | 86.8 hp 64.7 kW |
| PTO (tested) | 131.0 hp 97.7 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Wet disc brakes | |
| Horizon cab standard with air-conditioning. Comfort Ride cab suspension optional on Plus and Elite models. ISOBUS II and AutoGuidance available on Plus and Elite models. | |

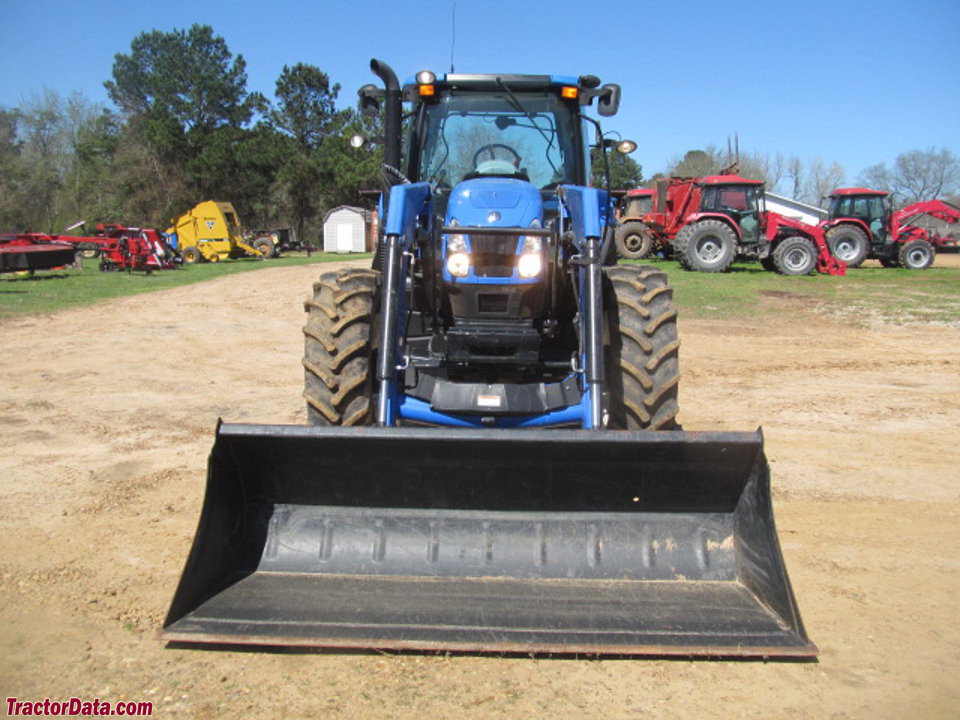

| Photos | |
 | |
 New Holland T6.165 photos... | |
| Hydraulics | |
| Type | fixed displacement |
| closed center load-sensing *Plus and Elite | |
| Rear valves | 2 to 4 |
| Mid valves | 0 to 3 |
| Pump flow | 21.1 gpm 79.9 lpm |
| 29.9 gpm*CCLS Plus and Elite 113.2 lpm | |
| Tractor hitch | |
| Rear Type | II |
| III/II | |
| Rear lift (at ends) | 8338 lbs 3782 kg |
| 9213 lbs*Lift capacity on Plus and Elite models 4179 kg | |
| Front Hitch | optional *On Elite models |
| Drawbar | Cat. 3 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Front PTO | optional *On Elite models |
| Dimensions & Tires | |
| Wheelbase | 104 inches 264 cm |
| Suspension Wheelbase | 105.7 inches 268 cm |
| SuperSteer Wheelbase | 109.8 inches 278 cm |
| Weight | 10561 to 12514 pounds |
| Front tire | 380/85R28 |
| Rear tire | 460/85R38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| 150 *Elite | |
| 200 OptOptional | |
| Battery CCA | 1300 |
| Battery volts | 12 |
| References | |
 | |
| New T6: More Features. More Farming. published in 2015, by New Holland | |
| T6 Series published in 2024, by New Holland |
