Iseki TG5570
|
|
| Production | |
| Manufacturer | Iseki |
| Compact Utility tractor | |
| Iseki TG5570 Engine | |
| Iseki 3.0L 4-cyl diesel | |
 Engine details ... |
| Iseki TG5570 Transmission | |
| 12-speed power shuttle | |
 Transmission details ... |
| Iseki TG5570 Power | |
| Engine | 60 hp 44.7 kW |
| PTO (claimed) | 47 hp 35.0 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Photos | |
| No photos of the Iseki TG5570 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pump flow | 12.8 gpm 48.4 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift (at ends) | 3924 lbs 1779 kg |
| Rear Arms | telescopic link ends |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 70.7 inches 179 cm |
| Weight | 4090 to 4442 pounds |
| Front tire | 9.50-18 |
| Rear tire | 14.9-28 |
 Full dimensions and tires ... | |
| References | |
 | |

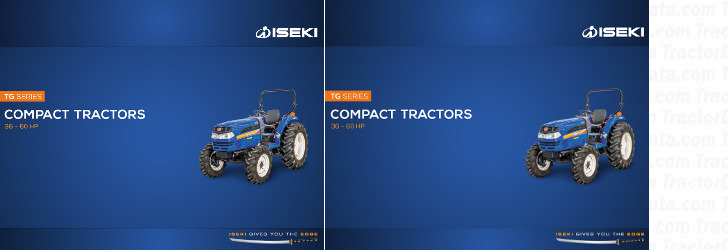

| TG Series Compact Tractors published in 2015, by Iseki | |
| TG Series Compact Tractors published in 2016, by Iseki |
