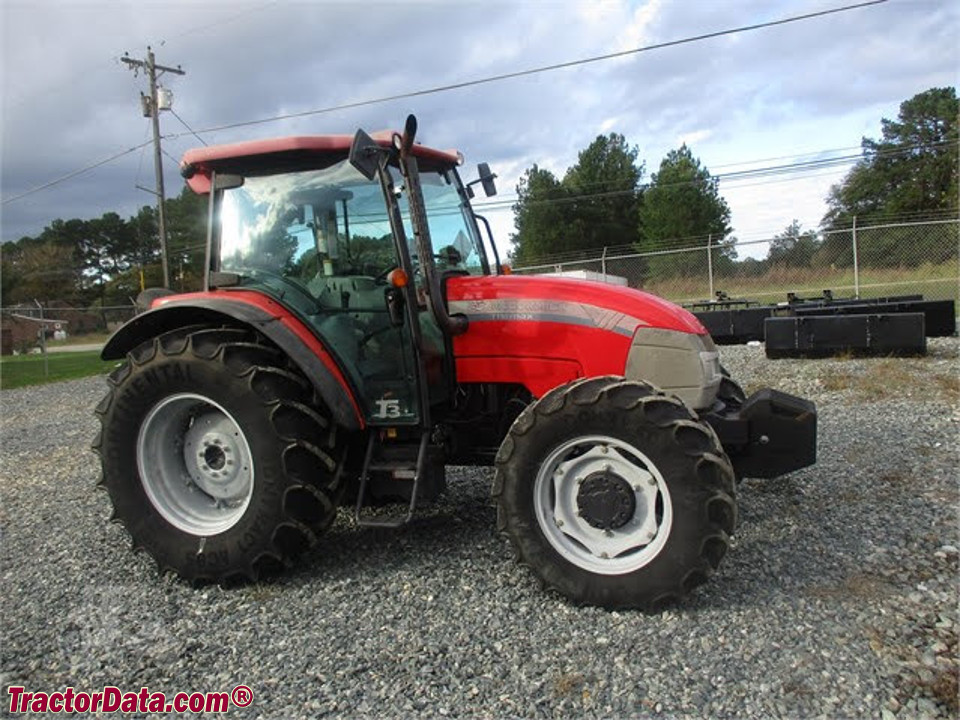

McCormick Intl T110 Max
| 2009 - 2013 |
T Max Series | Utility tractor |
|
Production |
Manufacturer: | McCormick Intl (a part of Argo)
|
Type: | Utility tractor
|
Factory: | Italy
|
McCormick Intl T110 Max Power |
Engine: | 102 hp 76.1 kW
|
PTO (claimed): | 86.5 hp 64.5 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Differential lock: | electro-hydraulic
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Two-post ROPS. Cab available with air-conditioning.
|
Transmissions: | 24-speed
|
| 12-speed power shuttle
|
| 36-speed three-speed power shift
|
Transmission details ... |
Hydraulics |
Type: | open center
|
Pump flow: | 13.8 gpm 52.2 lpm
|
Steering flow: | 7.9 gpm 29.9 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift: | 9590 lbs 4350 kg
|
Front Hitch: | II
|
Front lift: | 3968 lbs 1799 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Clutch: | electro-hydraulic wet disc
|
Rear RPM: | 540/1000
|
Front PTO: | independent
|
Front RPM: | 1000
|
Electrical |
Ground: | negative
|
Battery volts: | 12
|
