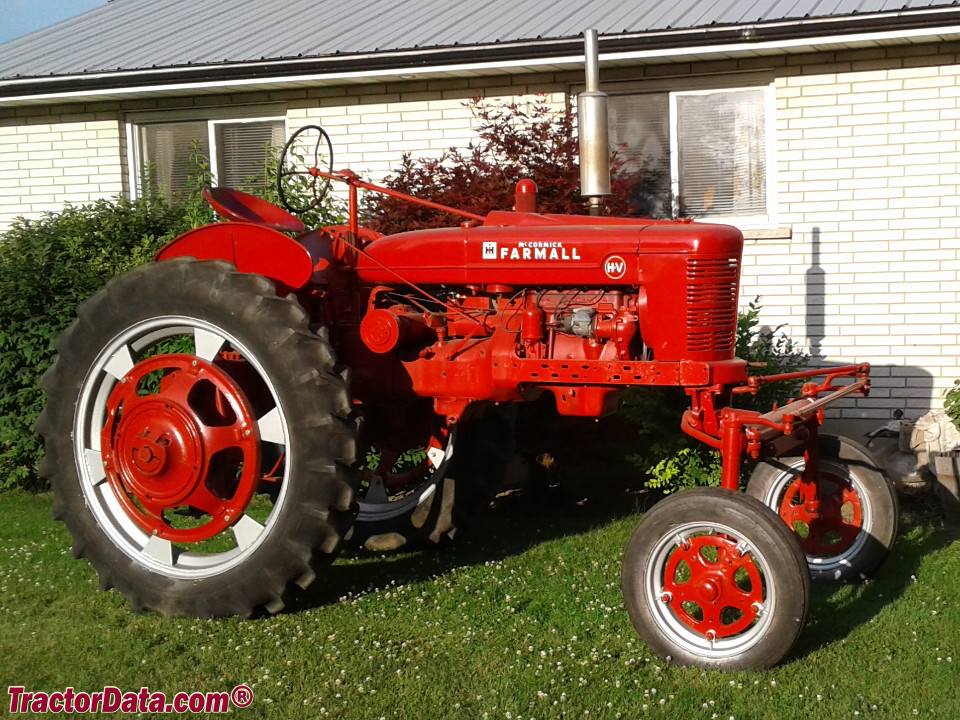

Farmall HV
|
|
| Production | |
| Manufacturer | Farmall (a part of International Harvester) |
| High-Clearance tractor | |
| Total built | 863 |
| Farmall HV Engines | |
| International Harvester 2.5L 4-cyl gasoline | |
| International Harvester 2.5L 4-cyl distillate | |
| International Harvester 2.5L 4-cyl kerosene | |
 Engine details ... |
| Farmall HV Transmission | |
| 5-speed sliding gear | |
 Transmission details ... |
| Farmall HV Power | |
| Drawbar (claimed) | 19 hp 14.2 kW |
| Belt (claimed) | 24 hp 17.9 kW |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |
 Farmall HV photos... | |
| Capacity | |
| Fuel | 17.5 gal 66.2 L |
| Aux. fuel | 0.875 gal 3.3 L |
| Hydraulic system | 6 gal 22.7 L |
| Hydraulics | |
| Capacity | 6 gal 22.7 L |
| Power Take-off (PTO) | |
| Rear RPM | 540 |
| Dimensions & Tires | |
| Wheelbase | 91 inches 231 cm |
| Weight | 4775 lbs 2165 kg |
| Front tire | 6.00x20 |
| Rear tire | 9.00x36 |
 Full dimensions and tires ... | |
| HV Serial Numbers | |
| 1939 | 501 |
| 1940 | 10653 |
| 1941 | 52387 |
| 1942 | 93237 |
| 1943 | 122091 |
| 1944 | 150251 |
| 1945 | 186123 |
| 1946 | 214820 |
| 1947 | 241143 |
| 1948 | 268991 |
| 1949 | 300876 |
| 1950 | 327975 |
| 1951 | 351923 |
| 1952 | 375861 |
| 1953 | 390500 |
FAQ: How to read a serial number table. | |
| HV Serial Location | |
 | |

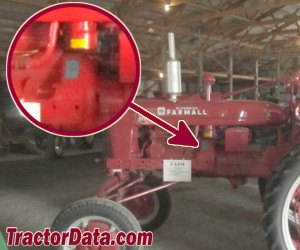

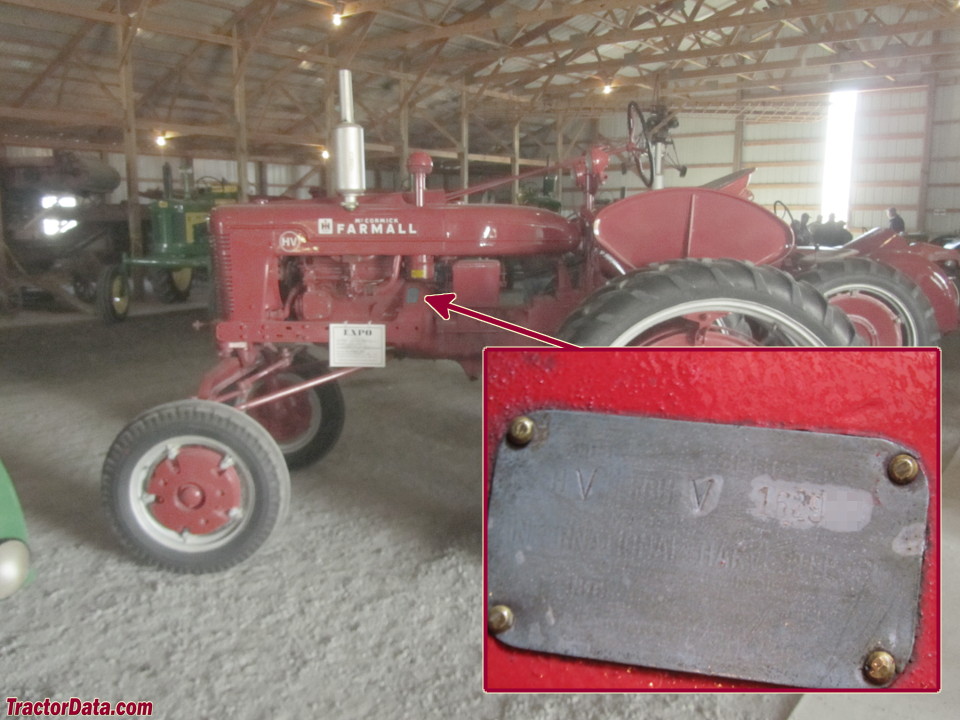

| Serial number plate on the left side of the transmission housing. |
| References | |
 | |
| General Line Catalog published in 1949, by International Harvester |
