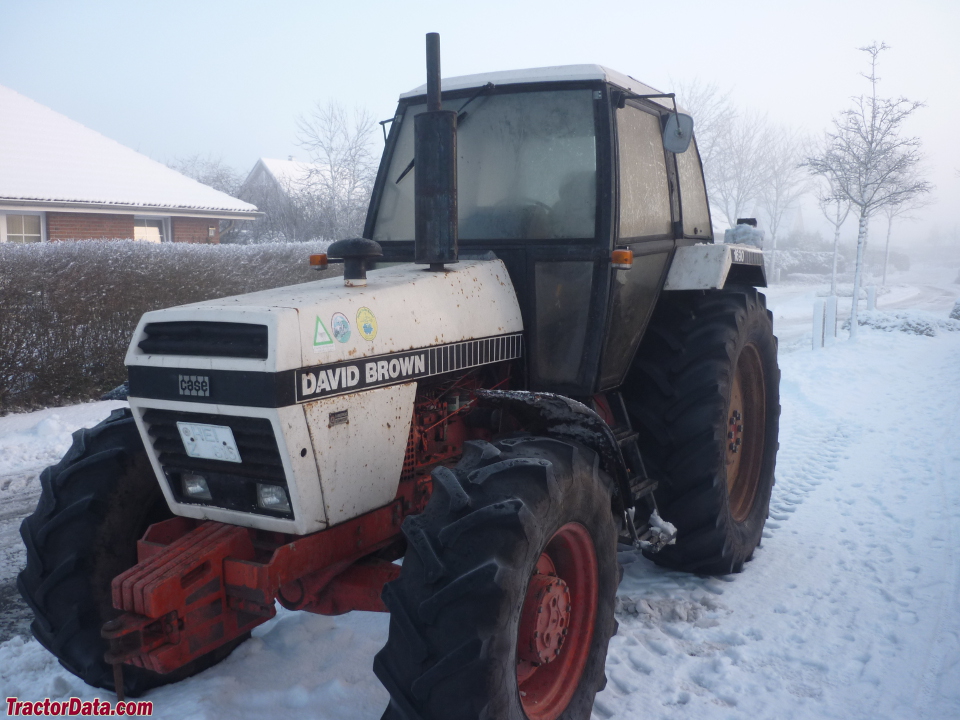

David Brown 1690
| | 1980 - 1984 |
| Utility tractor |
|
Note: the David Brown model 1690 is the same as the J.I. Case 1690. The following data is from the 1690 listing. |
| Production |
| Manufacturer: | David Brown (a part of J.I. Case)
|
| Type: | Utility tractor
|
| Factory: | Meltham Mills, Huddersfield, England
|
| Original price: | $30,000 (1983 )
|
| David Brown 1690 Power |
| PTO (claimed): | 90 hp
67.1 kW
|
| Drawbar (tested): | 72.55 hp
54.1 kW
|
| PTO (tested): | 90.39 hp
67.4 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post ROPS. Cab optional.
|
| Transmissions: | 12-speed synchromesh
|
| | 12-speed partial power shift
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| 1690 Serial Numbers |
| Location: | Serial number stamped into the top of the tractor's frame on the right side, next to the engine.
|
| 1980: | 11120101
|
| 1981: | 11211841
|
| 1982: | 11213684
|
| 1983: | 11214373
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
