Kubota M7-151
|
|
| Production | |
| Manufacturer | Kubota |
| Row-Crop tractor | |
| Built in Bierne, France | |
| Kubota M7-151 Engine | |
| Kubota 6.1L 4-cyl diesel | |
| Fuel tank | 87 gal 329.3 L |
| Exhaust fluid (DEF) | 10 gal 37.9 L |
 Engine details ... | |
| Kubota M7-151 Transmissions | |
| 24-speed partial power shift | |
| continuously variable transmission | |
 Transmission details ... |
| Kubota M7-151 Power | |
| Engine (gross) | 148 hp 110.4 kW |
| Engine (max) | 168 hp 125.3 kW |
| PTO (claimed) | 120 hp 89.5 kW |
| Drawbar (tested) | 122.69 hp 91.5 kW |
| PTO (tested) | 144.59 hp 107.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Cab standard. |
| Photos | |
 | |

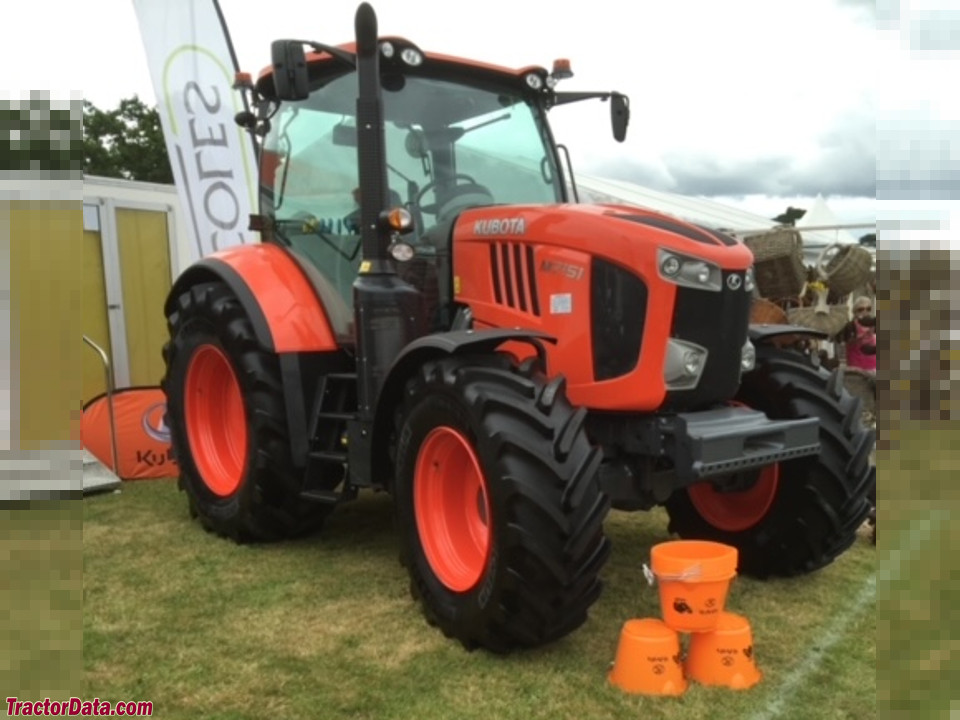

 Kubota M7-151 photos... | |
| Hydraulics | |
| Type | open center *Standard |
| closed center load sensing *Premium | |
| Pump flow | 21 gpm*Standard 79.5 lpm |
| 29 gpm*Premium 109.8 lpm | |
| Tractor hitch | |
| Rear Type | III |
| Control | lower-link electronic draft sensing |
| Rear lift (at ends) | 14770 lbs 6699 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E/1000/1000E |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 107 inches 271 cm |
| Weight | 15097 lbs 6847 kg |
| Front tire | 14.9R28 |
| Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| Kubota M7-151 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| 200 OptOptional | |
| Battery volts | 12 |
| References | |
 | |
| M7 Series published in 2016, by Kubota |
