John Deere 5100M Transmission
|
|
| Transmission options | |
| 16-speed power shuttle | |
| 32-speed two-speed power shift |
| Transmission | |
| Transmission | PowrReverser |
| Type | power shuttle |
| Gears | 16 forward and reverse |
| Clutch | wet disc |
| Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle. Push-button clutch. | |

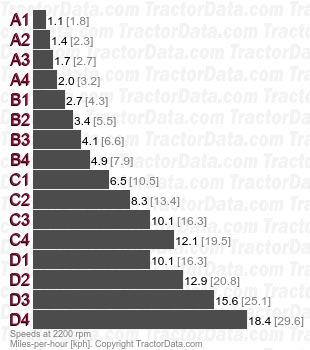

| Speeds | |
| With 480/70R28 rear tires. Reverse speeds are 10% faster than forward. | |
|
| Transmission | |
| Transmission | PowrReverser Plus |
| Type | two-speed power shift |
| Gears | 32 forward and 16 reverse |
| Clutch | wet disc |
| Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle and push-button high-low shift. Push-button clutch. | |

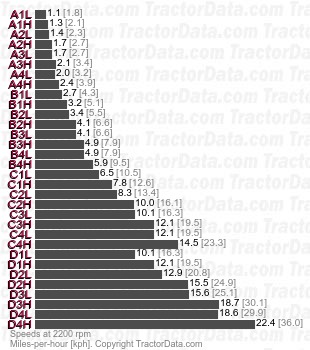

| Speeds | |
| With 480/70R28 rear tires. Reverse speeds are 10% faster than forward (high) speeds. | |
|
