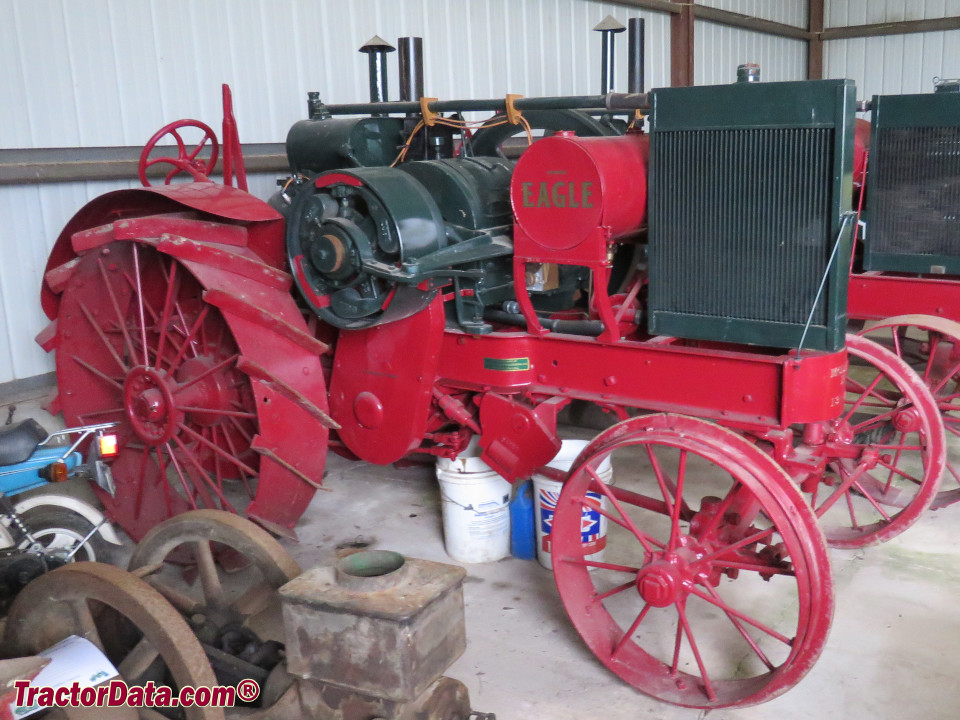

Eagle Manufacturing H 13-25
| | 1922 - 1930 |
| Standard-tread tractor |
|
| Production |
| Manufacturer: | Eagle Manufacturing
|
| Type: | Standard-tread tractor
|
| Factory: | Appleton, Wisconsin, USA
|
| Eagle Manufacturing H 13-25 Power |
| Drawbar (claimed): | 13 hp
9.7 kW
|
| Belt (claimed): | 25 hp
18.6 kW
|
| Plows: | 3 (14-inch)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | spur gear
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 2-speed gear
|
 Transmission details ... |
| Photos |
| No photos of the Eagle Manufacturing H 13-25 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Belt Pulley |
| Diameter: | 20 inches
50 cm
|
| Width: | 8.5 inches
21 cm
|
| RPM: | 450
|
| Speed: | 2350 ft/min
716.28 meters/min
|
| Page information |
| Last update: | August 5, 2014
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
