Kubota MX5200 Transmission


Kubota MX5200 tractor photo
2014 - 2020
MX Series
Utility tractor
Series map:
MX4800
MX5200
MX5800
49.3hp
54.7hp
61.4hp
Transmission options
8-speed sychronized shuttle
hydrostatic
Transmission
Typesychronized shuttle
Gears8 forward and reverse
Clutchdry disc
Speeds
MX5200  sychronized shuttle speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Speeds

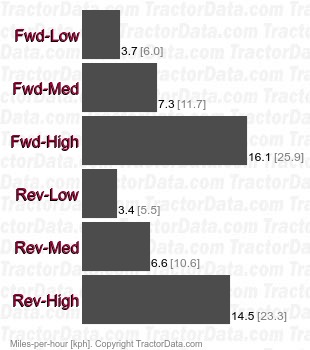

MX5200  hydrostatic speeds
