Kubota MX5100 Transmission


Kubota MX5100 tractor photo
2009 - 2014
MX Series
Utility tractor
MX5000
Series:MX4700MX5100
MX5200
Transmissions overview
8-speed partially synchronized
hydrostatic
Transmission
Manufacturer:Synchro Shuttle
Type:partially synchronized
Gears:8 forward and reverse
Clutch:dry disc
Transmission is synchronized between gears 3-4 and shuttle shifting.
Speeds
With 14.9-26 R1 rear tires.
MX5100  partially synchronized speeds
Transmission
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Hydrostatic transmission with three ranges and treadle foot pedal. Cruise control standard.
Speeds
With 14.9-26 R1 rear tires.

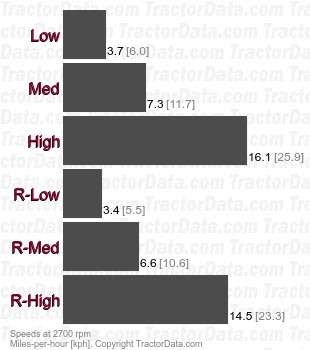

MX5100  hydrostatic speeds
