Tractors > Kubota > L1802

Kubota L1802

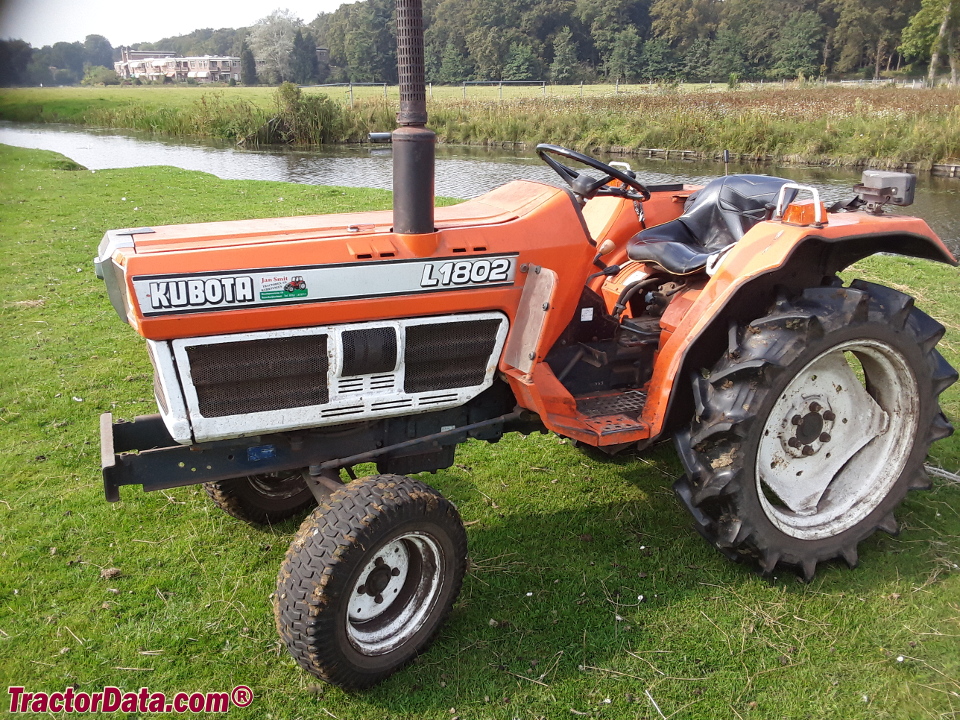

Kubota L1802 tractor photo
1978 - 1985
L02 Series
Compact Utility tractor
Series map:
L1802
L2002
13.3kw
14.7kw
Production
ManufacturerKubota
Compact Utility tractor
Built in Japan
Variants
L18022WD
L1802DT4WD
Kubota L1802 Engine
Kubota 1.1L 3-cyl diesel
Engine details ...
Kubota L1802 Transmission
16-speed
Transmission details ...
Kubota L1802 Power
Engine17.8 hp
13.3 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Photos
No photos of the Kubota L1802 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pump flow3.8 gpm
14.4 lpm
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM556@2500
774@2500
938@2500
1250@2500
Dimensions & Tires
Wheelbase59.1 inches
150 cm
Weight1742 to 1940 pounds
Front tire4.00-12
2WD Rear tire8.3-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
L1802 references literature
Sunshine Tractor published by Kubota
