Massey-Harris 21 Colt

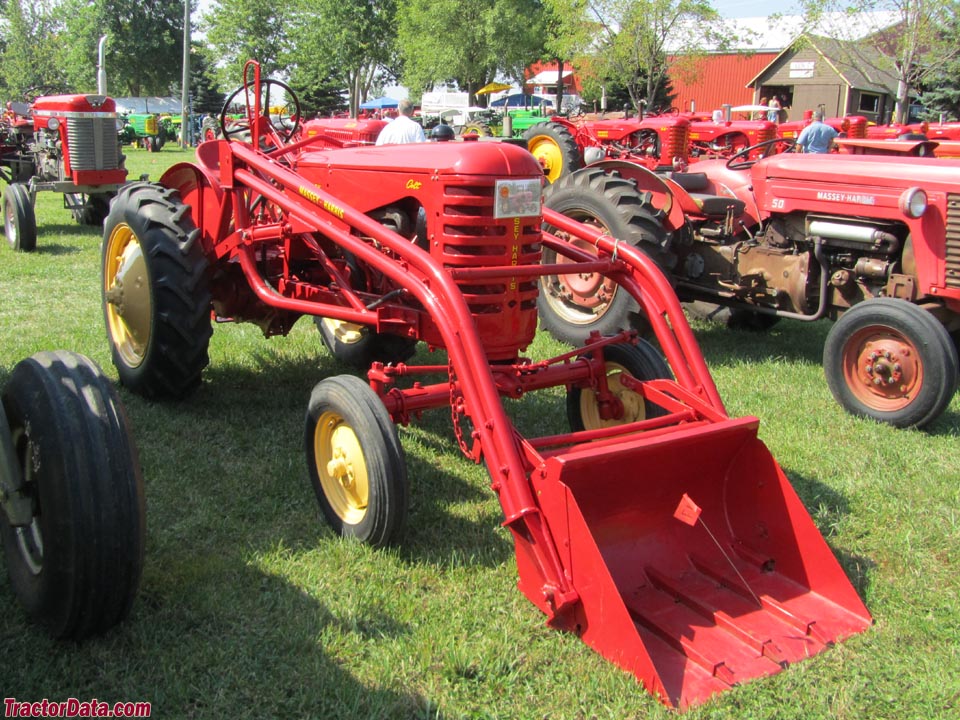

Massey-Harris 21 Colt tractor photo
1952 - 1953
Row-Crop tractor
Production
ManufacturerMassey-Harris
Row-Crop tractor
Built in Racine, Wisconsin, USA
The Massey-Harris 21 Colt was essentially the model 20, updated with new sheet metal.
Massey-Harris 21 Colt Engine
Continental 2.0L 4-cyl gasoline
Engine details ...
Massey-Harris 21 Colt Power
Drawbar (claimed)21.6 hp
16.1 kW
Belt (claimed)28.34 hp
21.1 kW
Plows2 (14-inch)
Mechanical
Two-wheel drive
Final drivesbevel gear
Steeringmanual
Open operator station.
Tractor hitch
Rear TypeI (optional)
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Wheelbase82.7 inches
210 cm
Front tire4x15
Rear tire10x28
Full dimensions and tires ...
21 Colt Serial Numbers
19521001
19531417
19542669

FAQ: How to read a serial number table.
Belt Pulley
Diameter9.5 inches
24 cm
Width6.25 inches
15 cm
RPM1224
Speed3044 ft/min
927.81 meters/min
References
21 Colt references literature
Power For Your Farm published in 1953, by Massey-Harris
Massey-Harris Tractors published in 1954
